Titan 10º Caster Blocks for Losi LMT

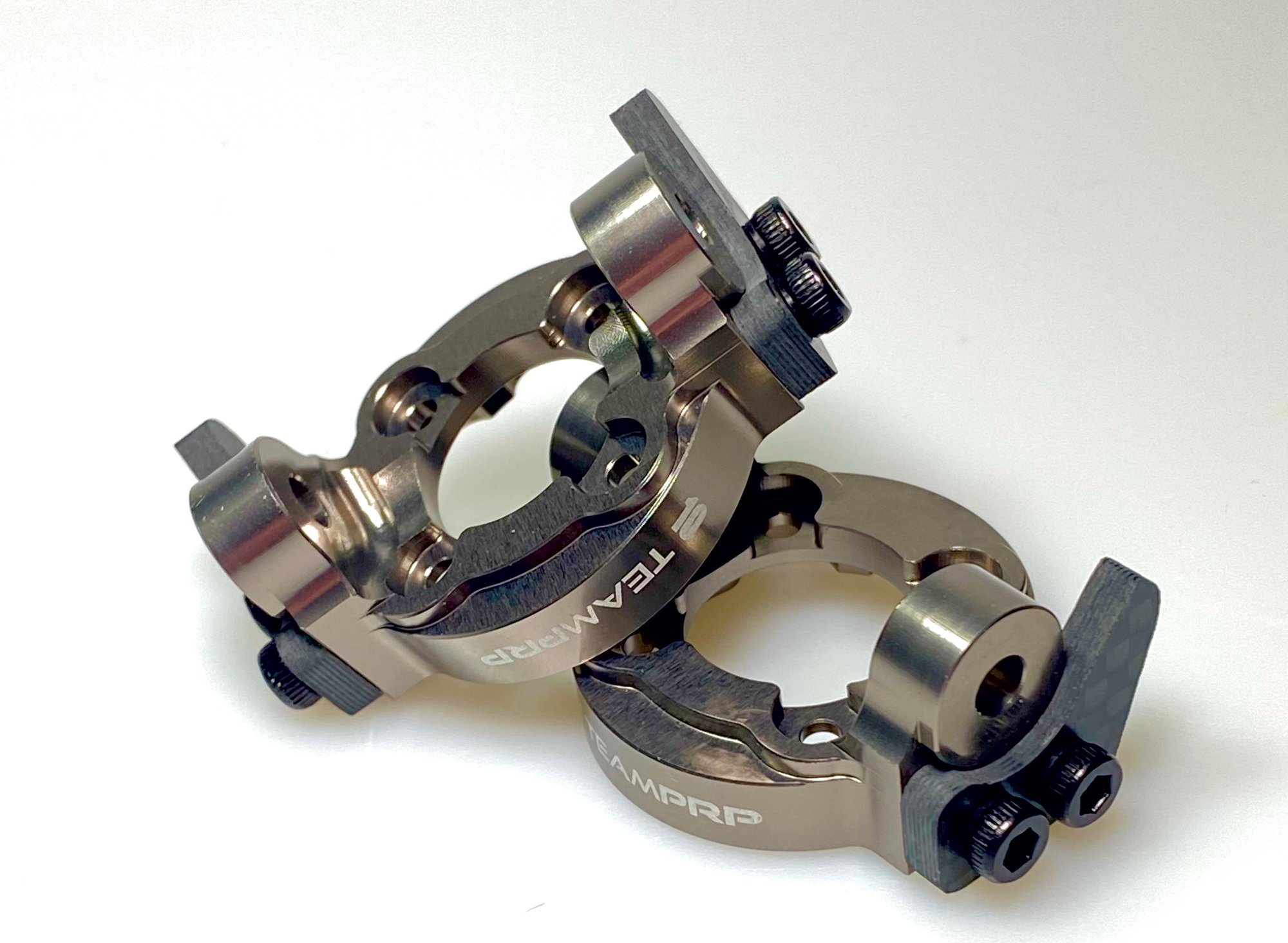

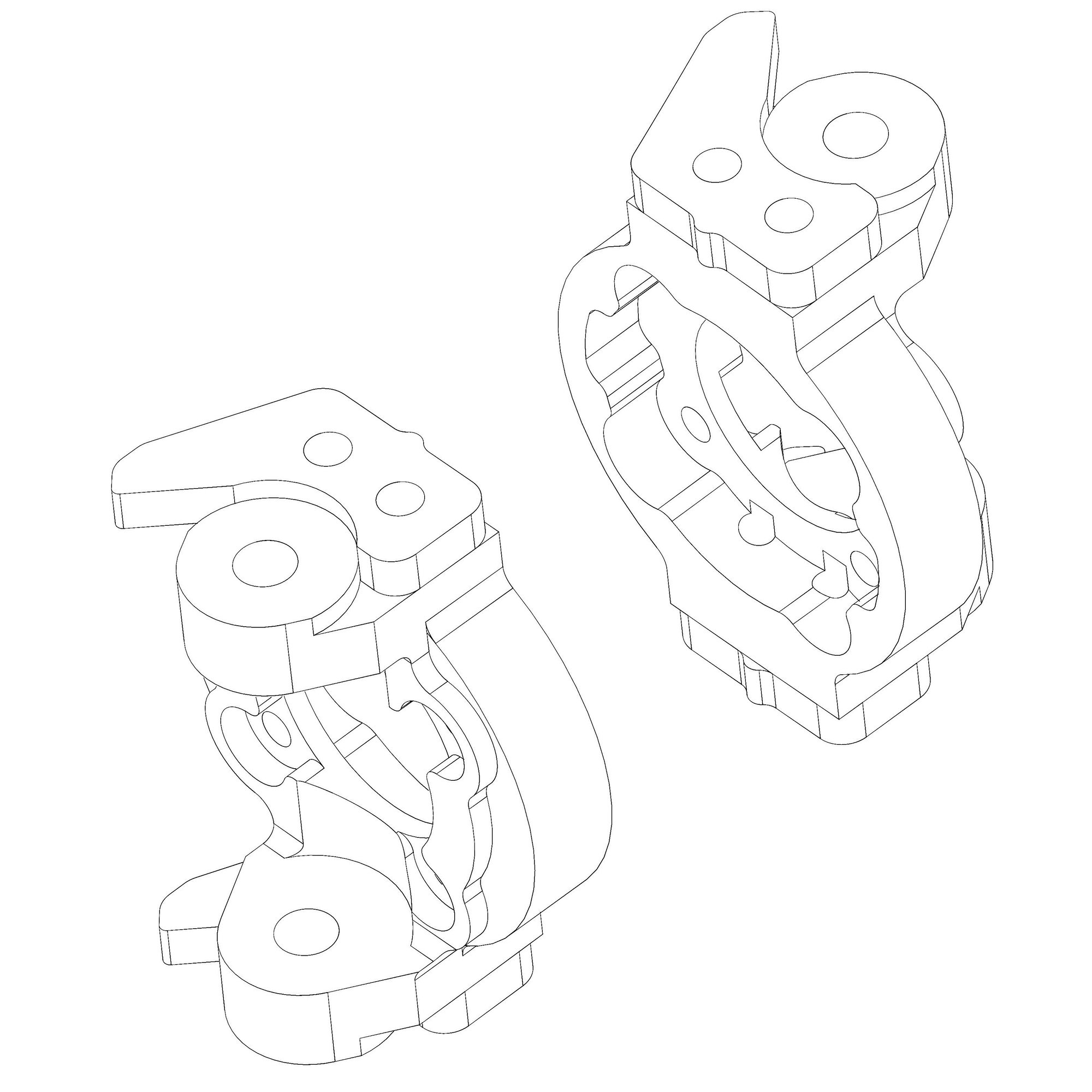

CNC machined aluminum caster blocks for the stock Losi LMT axle housings. NOTE: Titan Caster Blocks are a direct fit on stock Losi LMT plastic axles but will need to be modified to fit aftermarket aluminum axles. See note below in “Requires”. Featuring 10º of caster with replaceable carbon fiber steering stoppers. 10º of caster generally increases straight-line stability, slightly smooths out initial steering by decreasing steering at corner entry and increases steering at mid-corner and corner exit.

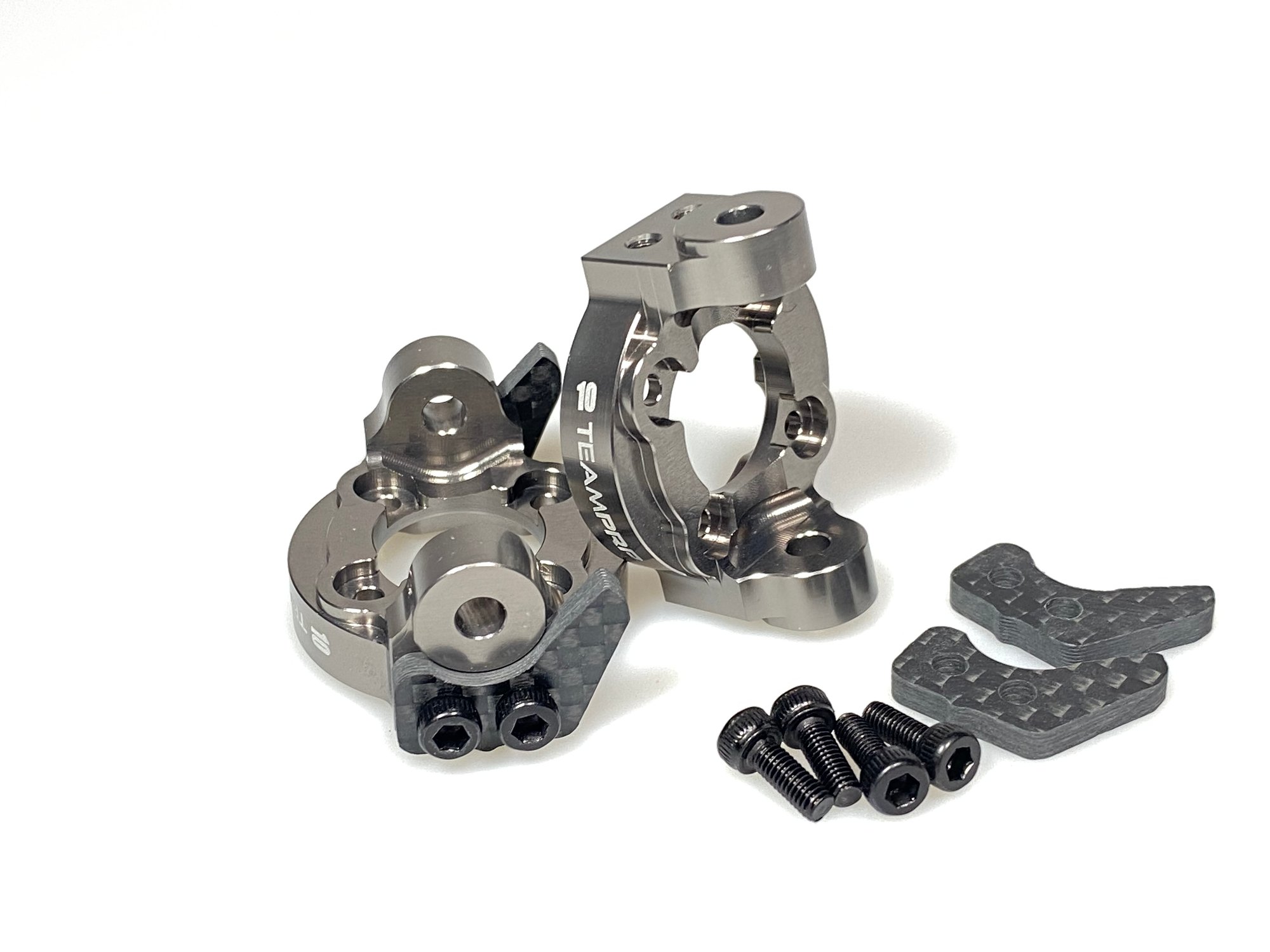

INCLUDES:
• Left and right cnc machined billet aluminum caster blocks w/10º caster
• 4x carbon steering limiters at 42º (Steering Limiter Tuning set option is available in the shop)
• 8x M3 socket cap head screws for the carbon steering limiters.
• Link to download instructions .

REQUIRES:
• Stock Losi LMT Axles. May NOT FIT on aftermarket axles. If you need them to fit aluminum axles you will need to modify them by removing some of the inner mounting screw boss arcs on the inside of the caster block. Or figure out your own way.
• Steering knuckles from Treal may occasionally bind. You may need to modify the Treal knuckles to turn smoothly. Stock Losi LMT parts fit perfectly as does the TLR Tuned aluminum knuckles and the Hot Racing aluminum knuckles. Other aftermarket knuckles have not been fit tested.
• M2.5x16mm Losi caster block screws from your LMT kit to attach caster blocks to axle.

Bonus Feature! The counterbore for the M2.5 hardware is large enough to fit the head of M3 screws. If you did the axle modification to run M3 hardware you can drill out the M2.5 holes on these blocks to 3mm holes and run your M3 hardware.

OPTIONS
• 40º, 35º and 30º (less steering than stock 45º) steering limiters. Locks in your steering for a smoother cornering feel. Check the shop for the product listing.

More Option Parts
Our Titan Caster Blocks pair well with these other great Team PRP parts:
• Steering Limiter Triple Pack
• Titan CF Steering Linkage
• FS Drag Link
• Servo Spacer

Pricing and specifications subject to change while we continue to develop and advance our products.
