Losi LMT Shock Tower Upgrades
Upgrade your Losi LMT kits (Roller, Digger trucks, TLR Tuned LMT) with advanced racing shock towers (outer chassis plates) from Team PRP. Choose the A. DUO Towers when running Shock On Axle or Shock On Link suspensions setups. And choose the B. STL Towers if you are using a Shock On Link suspension setup ONLY such as the Losi TLR-Tuned LMT trailing arm suspension. Use C. STL Body Post Extensions with the STL Towers if you need to move your front body posts further out away from the windshield.

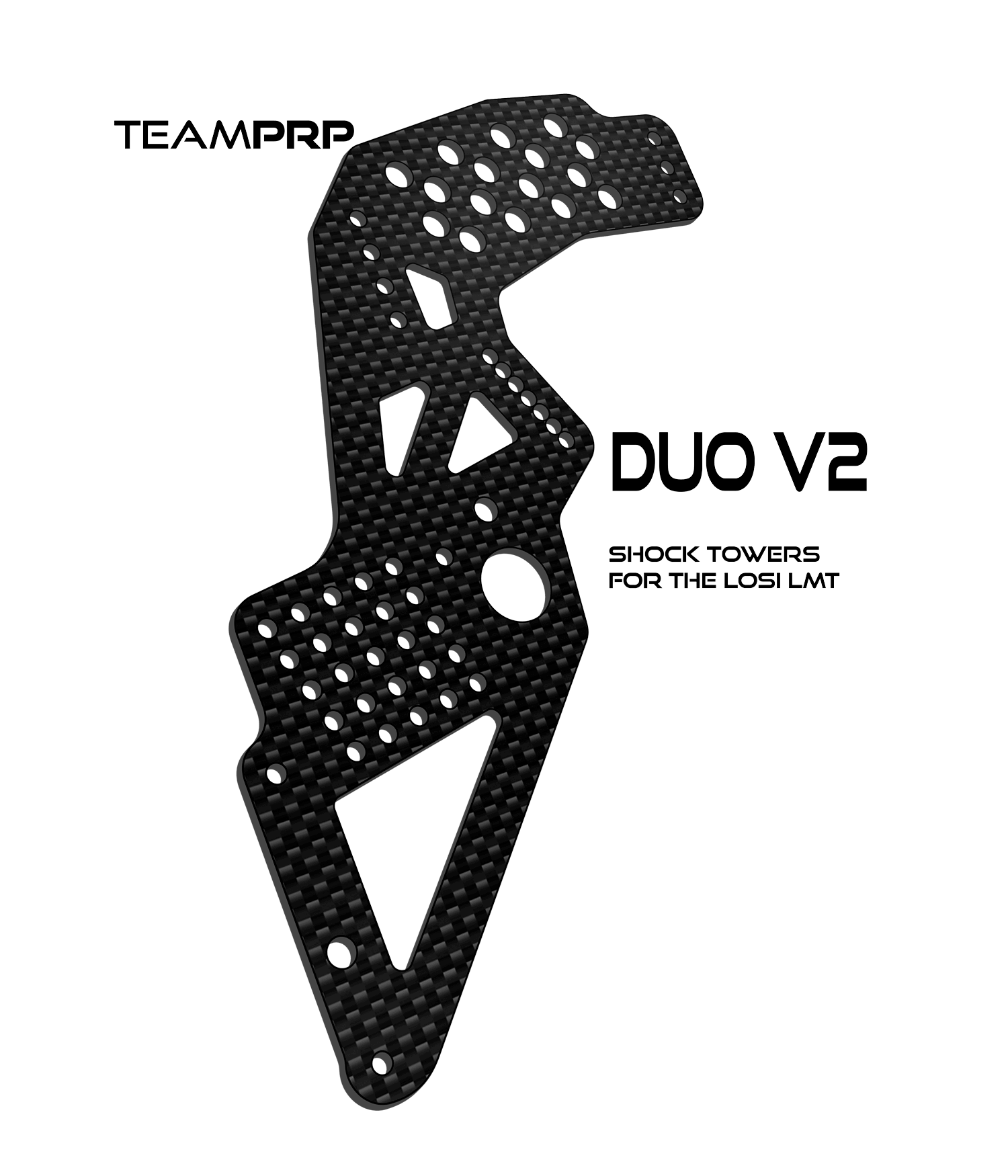

A. DUO Towers V2: BACK ORDER AVAILABLE. Shipping early January
Team PRP's Carbon Fiber DUO shock towers for the Losi LMT, Team PRP Ogre X and Team PRP Goblin kits reduces weight and lowers your truck for lower CG and better racing performance. Duo shock towers include more mounting locations for both 130mm length shocks (or similar length) and TLR Tuned 105 shocks (or similar length). Your choice of shock-on-axle or shock-on-link setups. Numerous limit strap mounting holes are included to fine tune droop settings without changing strap length and these towers include mounting holes for Losi LMT sway bars.
The stock LMT roll cage and wheelie bar will NOT bolt up to these shock towers. They are designed for Pro Mod racing without the unnecessary attachments.
COMPATIBILITY INFO
• Fits stock Losi LMT roller, RTR digger trucks and TLR Tuned kits.
• Fits the Team PRP Ogre X, Team PRP Goblin and Team PRP Goblin Unum chassis kits.
• Does NOT fit on the Team PRP S1 Ogre chassis or Ogre 1.5 chassis.
• Does NOT fit the stock Losi LMT roll cage.
• Does NOT fit the TLR tuned roll cage.
• Has NOT been tested with Losi Mega trucks using the Shock On Axle mounting method and may be incompatible without custom mods due to the long 15" wheelbase requiring steeper shock to axle mounting angles.
INCLUDES
• 3mm Carbon Fiber shock towers x4
• M3x10mm black socket cap head screws x20
• M3 Locknuts x8
• Black anodized aluminum M3x60mm cross braces x2
• Link to instructions. See Instructions on our Support page
REQUIRES
• Losi LMT RTR Digger trucks, Roller LMT or TLR Tuned LMT kit without the roll cages or the Team PRP Goblin chassis kits or Team PRP Ogre X chassis kit.
• Losi LMT hardware from your kit to mount your body posts and shocks.
• Losi LMT cross braces.

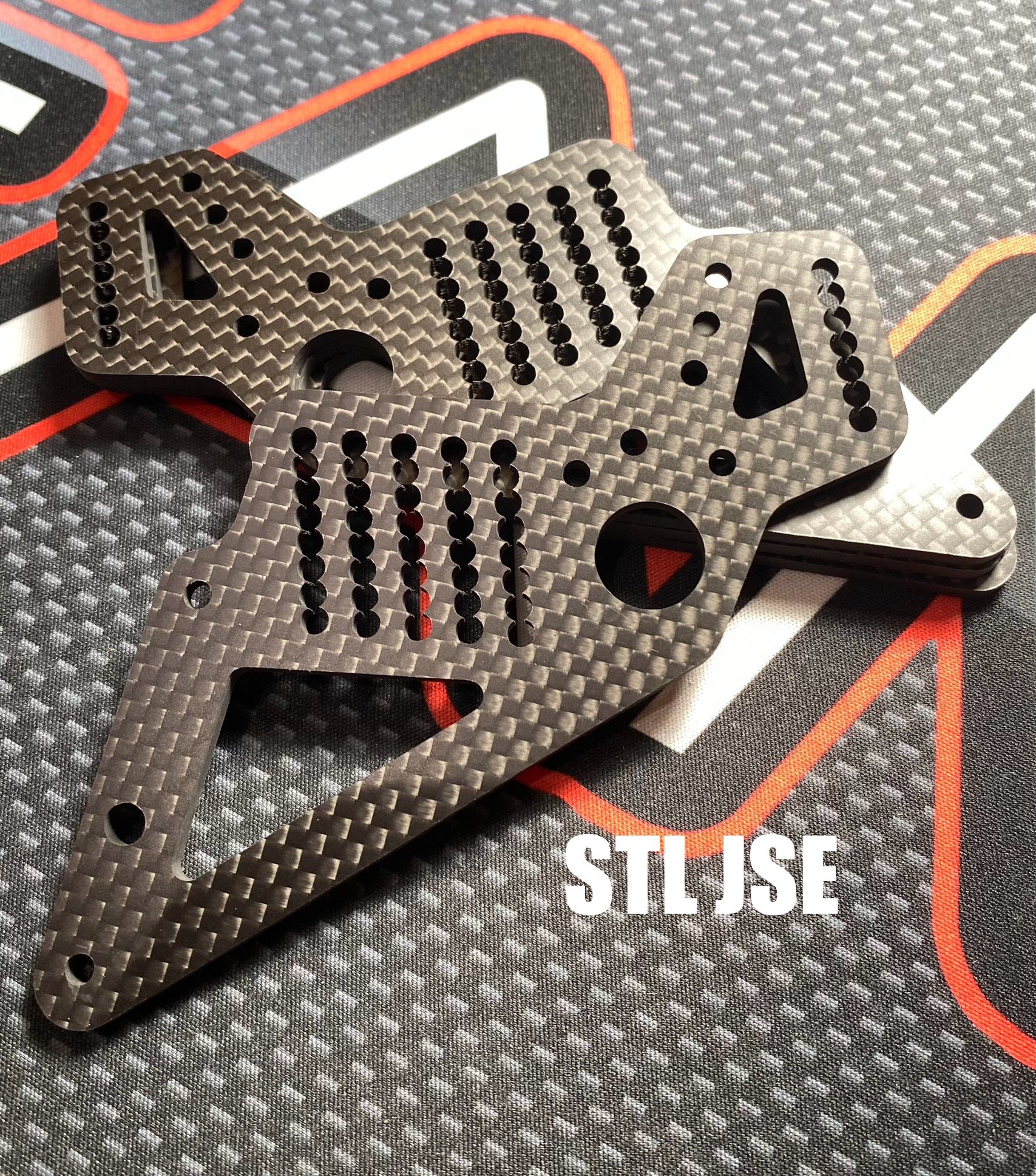

B. STL V1 Towers (will be fazed out)

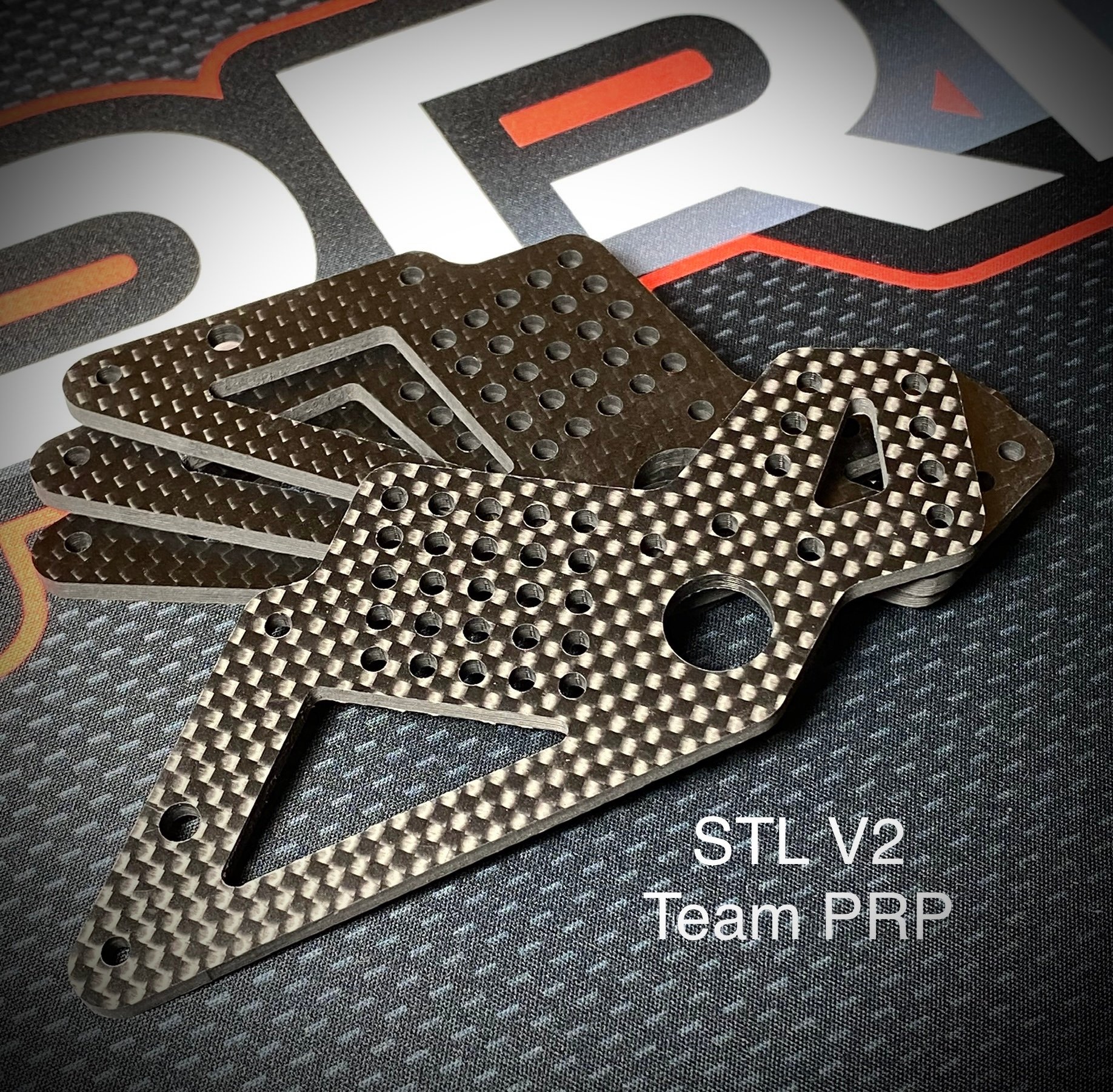

C. STL V2 Towers (New updated version):
STL Towers are for LMTs with Shock to Link suspension setups ONLY! These towers are compatible with RTR Diggers when used with trailing arm lower links, Mega trucks when used with trailing arm lower links and the TLR Tuned LMT which comes with trailing arm lower links. These are also a direct bolt on for the Ogre X, Goblin and Goblin Unum chassis kits when using lower trailing arm lower links.
• STL V1 has 3 rows of holes more optimized for 103-105mm shocks.
• STL V2 has 5 rows of holes optimized for 105 shocks down to shorter rear buggy shocks.
• Allows lower racing ride height with TLR Tuned 105mm shocks and other similar size shocks and with V2 you may now use shorter shocks in the 90-100mm range more effectively.
• Incorporates droop adjustments with the use of Limit strap mounting holes.
• Allows the use of the lighter weight 10mm x 60mm Losi LMT cross brace above the sway bar mounting hole.
• Lower body post mounting holes for slammed body setups with trimmed LMT body posts or normal height setups with stock LMT length posts. Body post extensions are available. They are OPTION D on this shop page.
INCLUDES
• 3mm Carbon Fiber shock towers x4
• M3x10mm screws x 16
• M3 Locknuts x8
• Link to instructions. See Instructions on our Support page
REQUIRES
• Additional Mounting hardware from your LMT kit or your own custom hardware.
• 60mm wide shock mount cross braces from your Losi LMT kit or aftermarket cross braces.
COMPATIBILITY INFO
• Compatible with Losi LMT kits when used with Shock on Link suspension setups such as TLR Tuned LMT trailing arm lower links.
• Compatible with the Team PRP Ogre X, Team PRP Goblin and Team PRP Goblin Unum chassis kits when used with trailing arm lower links.
• Does NOT fit on the Team PRP S1 Ogre chassis or Ogre 1.5 chassis.
• Does NOT fit on the Team PRP FCR chassis.
• Does NOT fit the stock Losi LMT roll cage.
• Does NOT fit the TLR tuned roll cage.
• Does NOT work with Shock On Axle setups. Use the DUO towers for Shock on Axle.
NOTICE: The stock LMT roll cage and wheelie bar will NOT bolt up to these shock towers. They are designed for Pro Mod racing without the unnecessary attachments.
D. STL front body post extensions:
Mount your front body posts further toward the front away from the windshield with these carbon fiber body post extensions. Also fits on the new Ogre 1.5 shock towers.
INCLUDES
• Carbon Fiber body post mount extensions x2
• M3x10 cap head screws x2
• M3x16 cap head screws x2 (extra long for limit strap)
• M3 hex nuts x2
• M3 lock nuts x4
• M3x1mm spacer x2 (for limit strap spacing)
• 55mm black anodized aluminum cross brace x1
REQUIRES
• Body posts from your LMT or TLR Tuned LMT kit
• Body post mounting hardware
• STLV2 shock towers (also fits the Ogre 1.5 shock towers)
Pricing and specifications subject to change while we continue to develop and advance our products.
