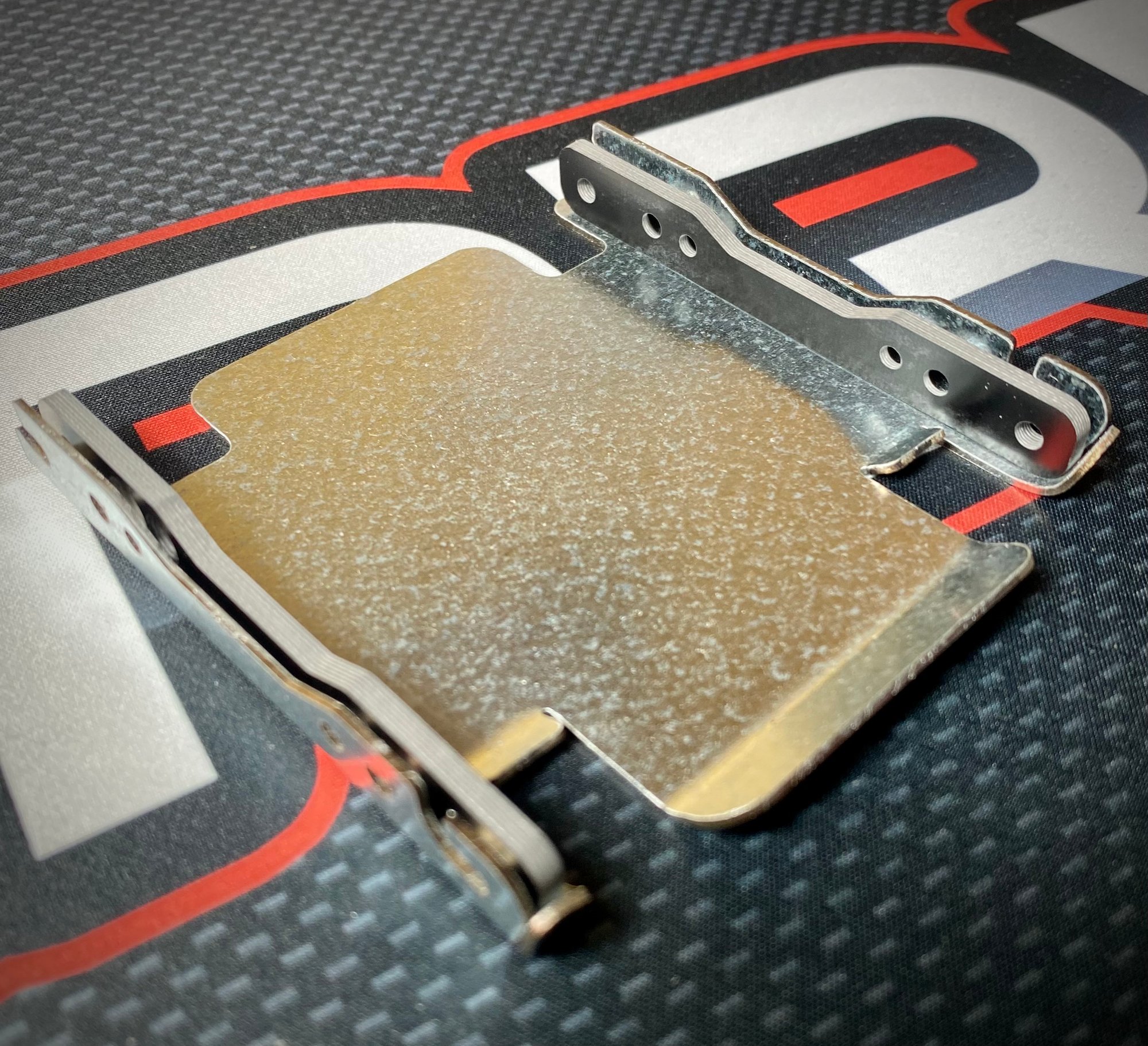

Ogre Skid Plate

Team PRP Ogre skid plate fits the Ogre X, Ogre 1.5 and S1 Ogre chassis kits ONLY! These do NOT fit on the stock Losi LMT. The Ogre skid plate is designed to excel both outdoor and indoor thanks to bends on all forward facing edges. The large flat bottom is smooth to avoid any hangups when landing hard and it is the perfect platform for adding stick-on weights for an even lower CG! The mounting hole slots allow you to keep your trailing arm lower link screws installed making skid plate installation and removal easier.

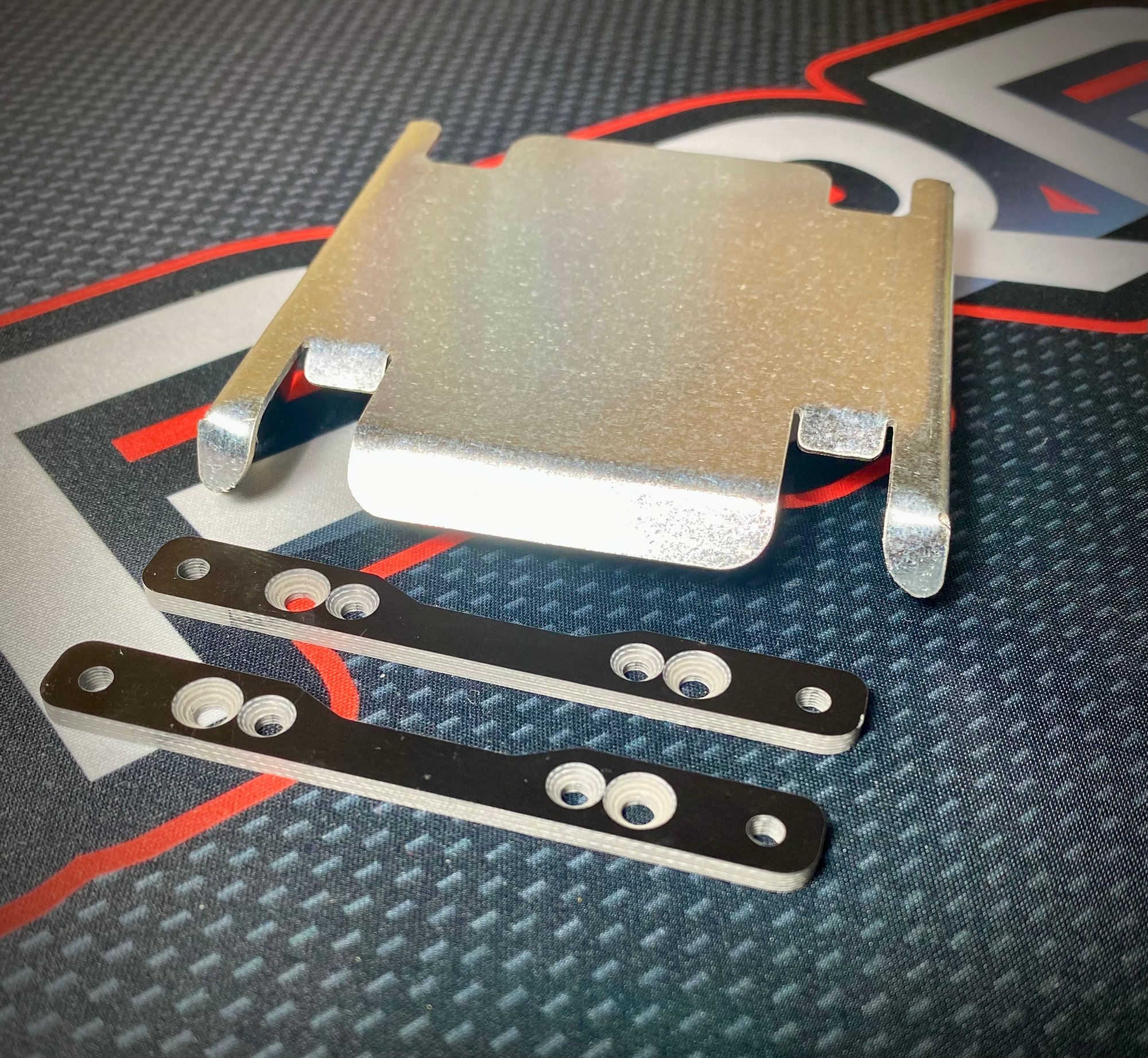

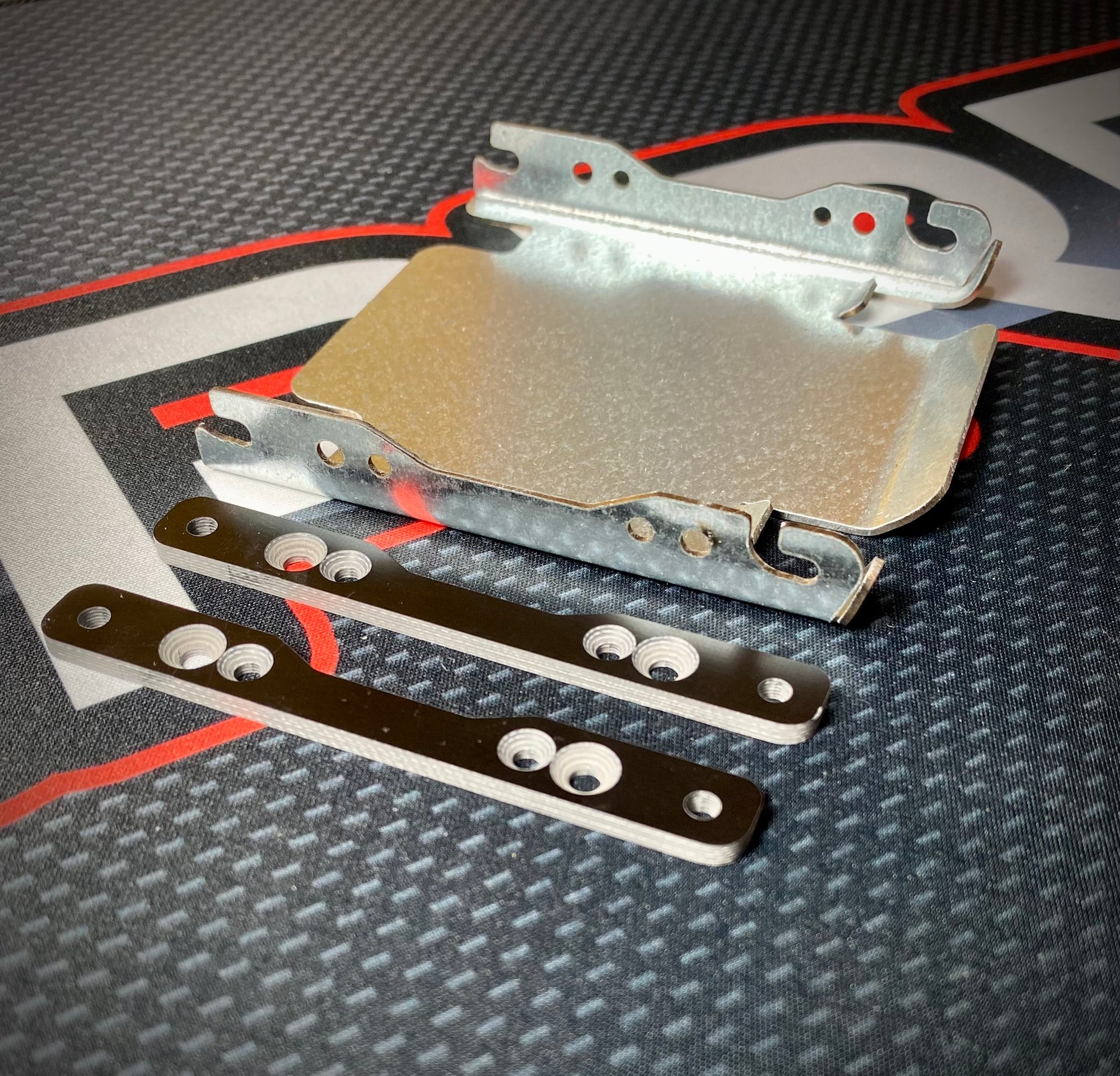

Steel Skid Plate Set Includes:
• 1mm thick steel skid plate.
• 2.5mm countersink skid plate spacers x2.

How to Install:
1. Remove Ogre Skid Rails and trailing arm lower link mounting screws.
2. Attach G10 countersunk spacer plates by sliding the trailing arm lower link screws through the mounting holes.
3. Reattach 4-links but keep the lower link screws loose leaving space for the skid plate to fit over them.
4. It is optional to install the flat head screws from your Ogre kit into the countersunk spacers.
5. Fit skid plate into place sliding it over the lower link screws.
6. Push the skid plate tightly into position and tighten lower link screws. The skid plate should now be fully mounted and ready to run.
7. The skid plate also allows you to install the 8 inner screws (not included) on the outside of the skid plate if you like (that's what the extra holes are for). You may also leave these 8 inner screws off if you are not running the losi cross braces in this location on the chassis.
8. Illustrated instructions will be made when I have time, haha!
9. Oh yeah, and make sure the angled edges of the skid plate face forward. Unless you race in reverse :P

Pricing and specifications subject to change while we continue to develop and advance our products.
