Team PRP Ogre X LMT Chassis Kit
Sold out! Next batch expected late February.
Please read this entire page thoroughly! This is a precise conversion kit with a lot of details. It is recommended for hobbyists and racers that know how to build kits to high standards. This kit requires you to cut the LMT mega center shaft drive shafts part #LOS242057 to size. The "Digger trucks" center drive shafts are too short (Unless you customize and shorten your wheelbase).
The Team PRP Ogre X conversion kit for the Losi LMT is designed to convert your LMT into a pure-bred, low CG, 2S Pro Mod racing machine legal in most RCMT competitions around the country with a sub 14" wheelbase. The Ogre X chassis keeps the majority of the race winning geometry of the original S1 Ogre while adopting an all new design with advancements in chassis configuration giving it a lower center of gravity than the S1 Ogre and includes standardized LMT shock tower mounting. The shock tower mounting holes allow you to use a wide range of available LMT shock towers (outer chassis plates) to fully customize your setup. Whether its with our own Team PRP LMT shock tower options or others you'll be able to dial in your kit to your own preferences and racing classes!
The core chassis plates of the "X" can be flipped side to side or rotated front to rear as you like to position your motor at the front left, rear left, front right or rear right. This is why I call it the "X"!
The Ogre X accommodates shock lengths of 90mm to 105mm eye to eye when using our STL towers for a shock to link setup. Full length LMT 130mm eye to eye shocks can be used with the Team PRP DUO towers (sold separately) or stock Losi LMT towers for a shock to axle setup.
The "X" comes standard with shorty battery mounts: 27 x 48 x 97mm Opening.
The Ogre X is available in 4 versions:
1. Bare Bones: PRE ORDER status. Available in February. Left and Right center chassis plates with battery mount assembly, no other hardware.
2. CORE: central core chassis kit with 4-links, hardware, NO shock towers.
3. RACE: full chassis conversion kit.

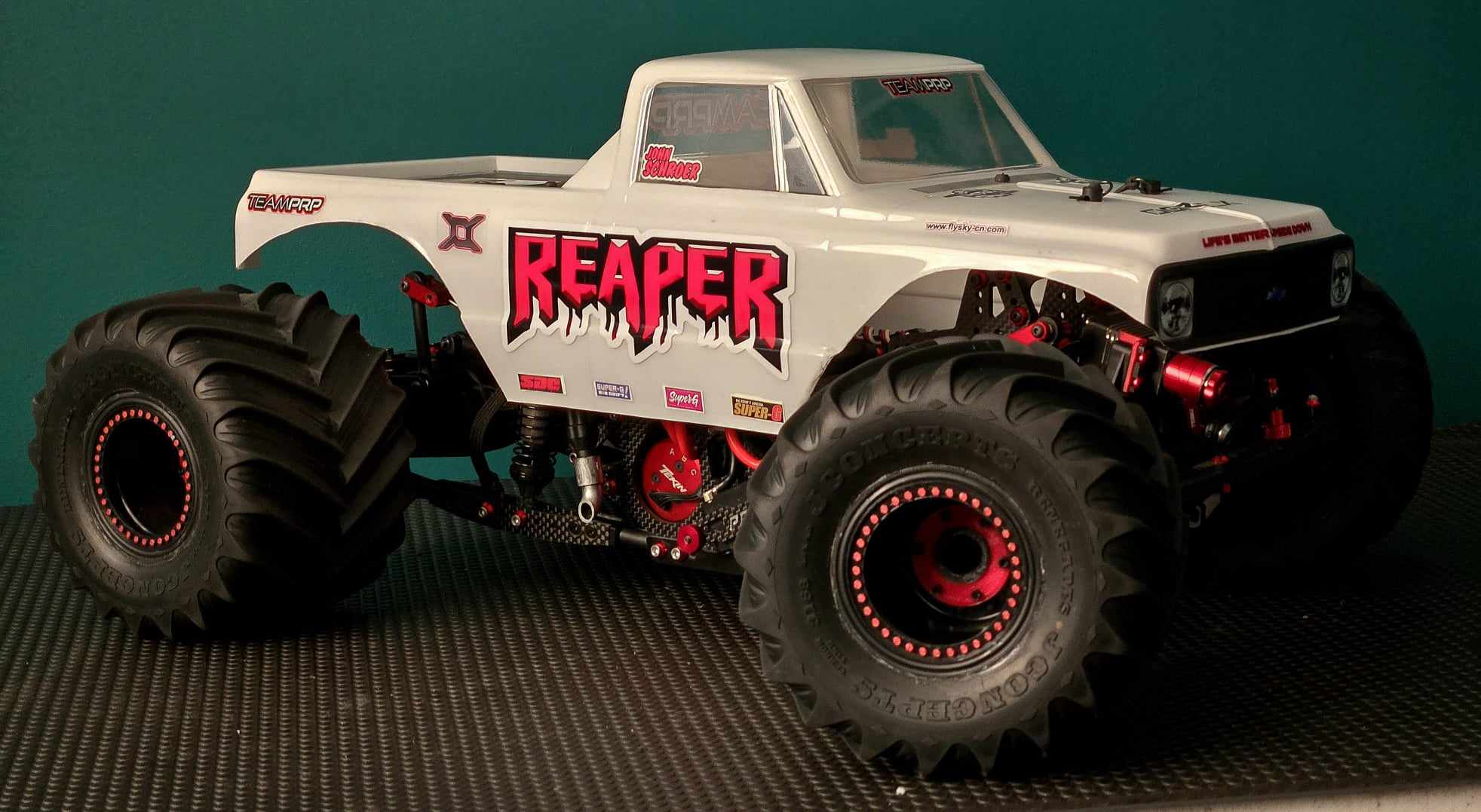

4. 🔥 JSE FULL BLING 🔥 : full chassis conversion kit with red anodized parts and many option parts. See included parts listings for each kit below.
REQUIRED PARTS:
• LMT Mega Truck or LMT TLR Tuned long mega drive shaft CUT DOWN TO LENGTH.
• Losi LMT donor kit. You will need to use most of the parts that came with your kit: Losi LMT rod ends, cross braces, axles, transmission, sway bars, body posts, wheels and tires, etc...
• Shocks. Accommodates shock lengths of 90mm to 105mm eye to eye when using our STL towers for a shock to link setup. Full length Digger rtr 130mm eye to eye shocks can be used with DUO towers for a shock to axle setup.
• We recommend Losi LMT TLR Tuned Shock Standoffs part # 243024
• Ogre X Core Kit requires shock towers/outer chassis plates from your LMT kit or aftermarket such as our own STL or Duo shock towers. Race kit and Full Bling kit come with shock towers.
• 2S Lipo Shorty battery packs fit standard. 27x48x97mm mounting dimensions are stock. The battery opening allows many lipo packs the space to use a lipo weight shim taped to your pack for additional lower cg weight. Full length 2S batteries will fit with the use of longer standoffs available separately. If you use longer battery strap standoffs the 3S Shorty Power Cell from Tekin or other 3s shorty packs under 27mm tall may fit as well. Our team uses Tekin 2S Power Cells, RX4 or RX8 ESC and Tekin Pro 4 HD 4300kv or Tekin Pro 4 4600kv motors.
• Limit straps of 95mm are recommended as a tuning aid and to reduce the risk of the drive shaft binding at full droop. 90mm to 105mm will work with 95 allowing for full spectrum of adjustments. Your suspension droop will need to be carefully tuned to your setup or risk drive shaft binding. This is due to the flipped transmission creating a steeper angle of the drive shaft at full droop. If you don't run limit straps you can tune droop with spacers inside of your shocks if they are too long for the location you want them mounted in.
• Accommodates 540 motors and most 550 based motors. I am personally running the Tekin Pro4 HD 4300kv 550 size motors.
BARE BONES KIT INCLUDED PARTS: This is the bare bones cheapest option for the Do-It-Yourself-er.
• Includes Reversible carbon fiber chassis plates to mount your motor front, rear, left or right.
• Includes Carbon fiber battery straps and battery mounting hardware.
BARE BONES KIT REQUIREMENTS:
• Requires all mounting hardware: m3, m2.5, screws, nuts, washers, etc.
• Requires Shock Towers from your Losi LMT, from Team PRP or aftermarket LMT towers.
• Requires upper 4-links or M4 turnbuckles capable of setting axle tilt near zero or a forward tilt (pinion angled up) when combined with your lower link choice.
• Requires lower links or trailing arms depending on the setup you go with for shock towers.
• Requires literally everything else you can think of to assemble a truck!
• This is the bare bones cheaper option for the Do-It-Yourself-er: Use the Ogre X manual for reference but you will need to figure it out! Good luck!

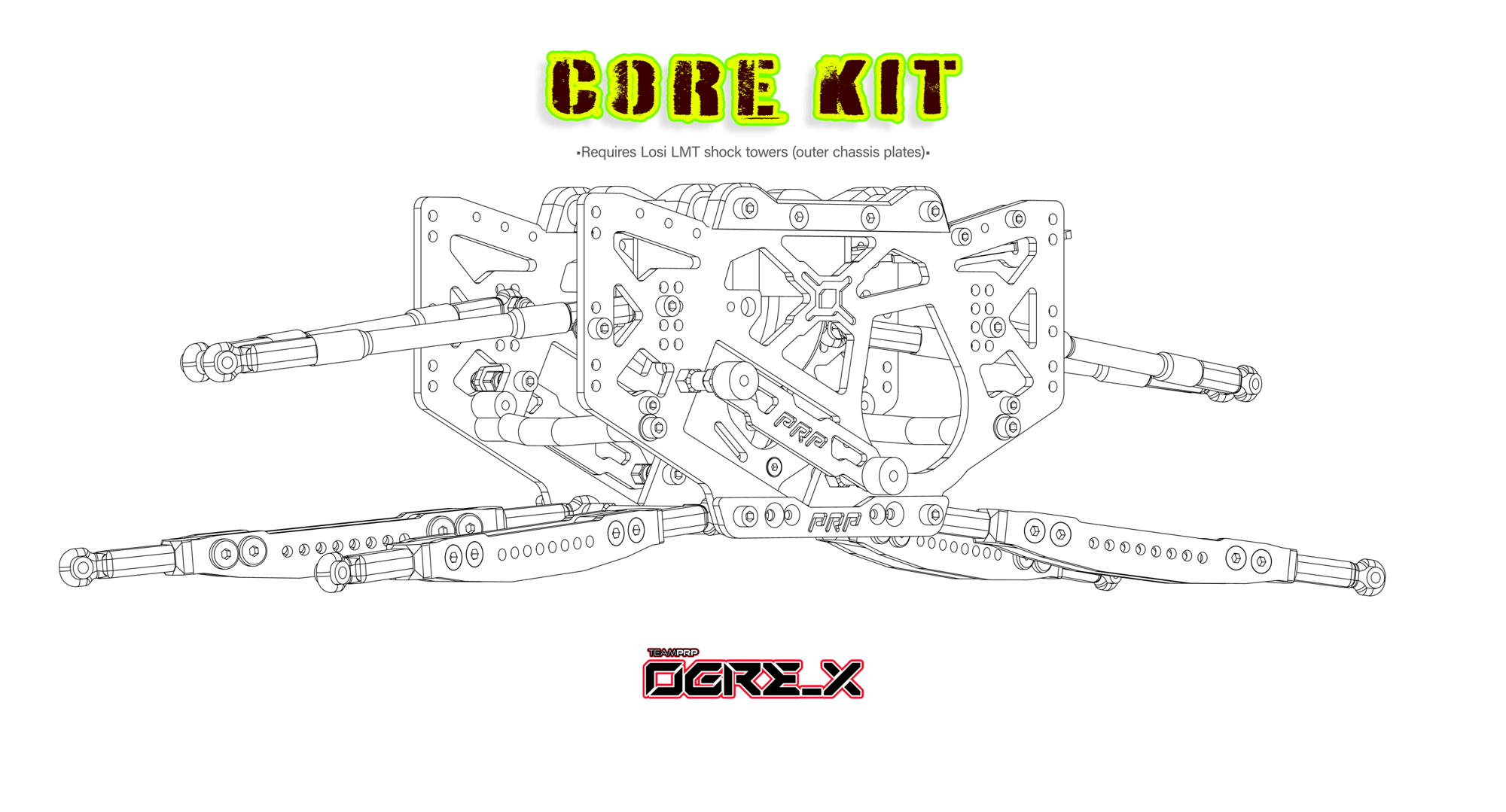

CORE KIT INCLUDED PARTS:
• Reversible carbon fiber chassis plates to mount your motor front, rear, left or right
• Low CG carbon fiber ESC Tray
• Carbon fiber ESC tray mounts
• G10 chassis skid rails
• Aluminum anodized upper 4-links of 75mm length for a sub 14" wheelbase. Upper links include RC4WD M4 26mm length rod ends
• Aluminum and carbon fiber long lower trailing arms for a sub 14" wb (Stock LMT rod ends required)
• Aluminum Cross braces (Losi LMT cross braces also required)
• Black socket head screws
• Black locknuts
• Black aluminum spacers
• Link to instruction manual
• Team PRP decals
CORE KIT REQUIRES SHOCK TOWERS:
• Core kit does NOT include shock towers. You may use stock Losi LMT Towers, TLR Tuned towers, aftermarket carbon fiber towers or Team PRP's own Duo or STL towers.

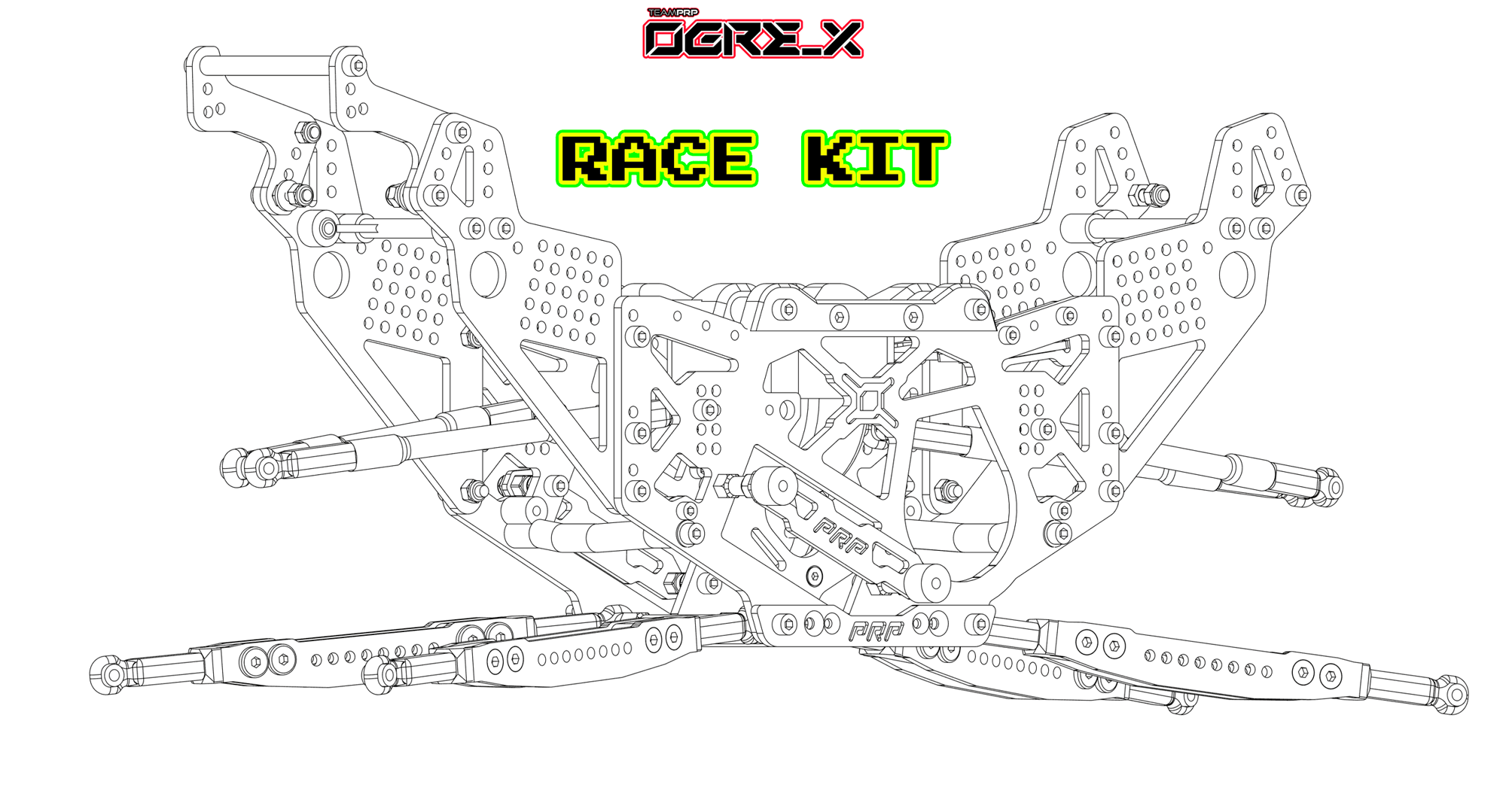

RACE KIT INCLUDED PARTS:
• Reversible carbon fiber chassis plates to mount your motor front, rear, left or right
• Race kit includes 3mm carbon fiber STL V2 shock towers and can accommodate 90-105mm eye to eye shocks.
• Low CG carbon fiber ESC Tray
• Carbon fiber ESC tray mounts
• G10 bottom chassis skid rails
• Aluminum anodized upper 4-links of 75mm length for a sub 14" wheelbase. Upper links include RC4WD M4 26mm length rod ends.
• Aluminum and carbon fiber long lower trailing arms for a sub 14" wb (LMT rod ends required)
• Aluminum Cross braces (Losi LMT cross braces also required)
• Black socket head screws
• Black locknuts
• Black spacers
• Link to instruction manual
• Team PRP decals
Option parts included in RACE kit:
• Carbon fiber front body post extensions!

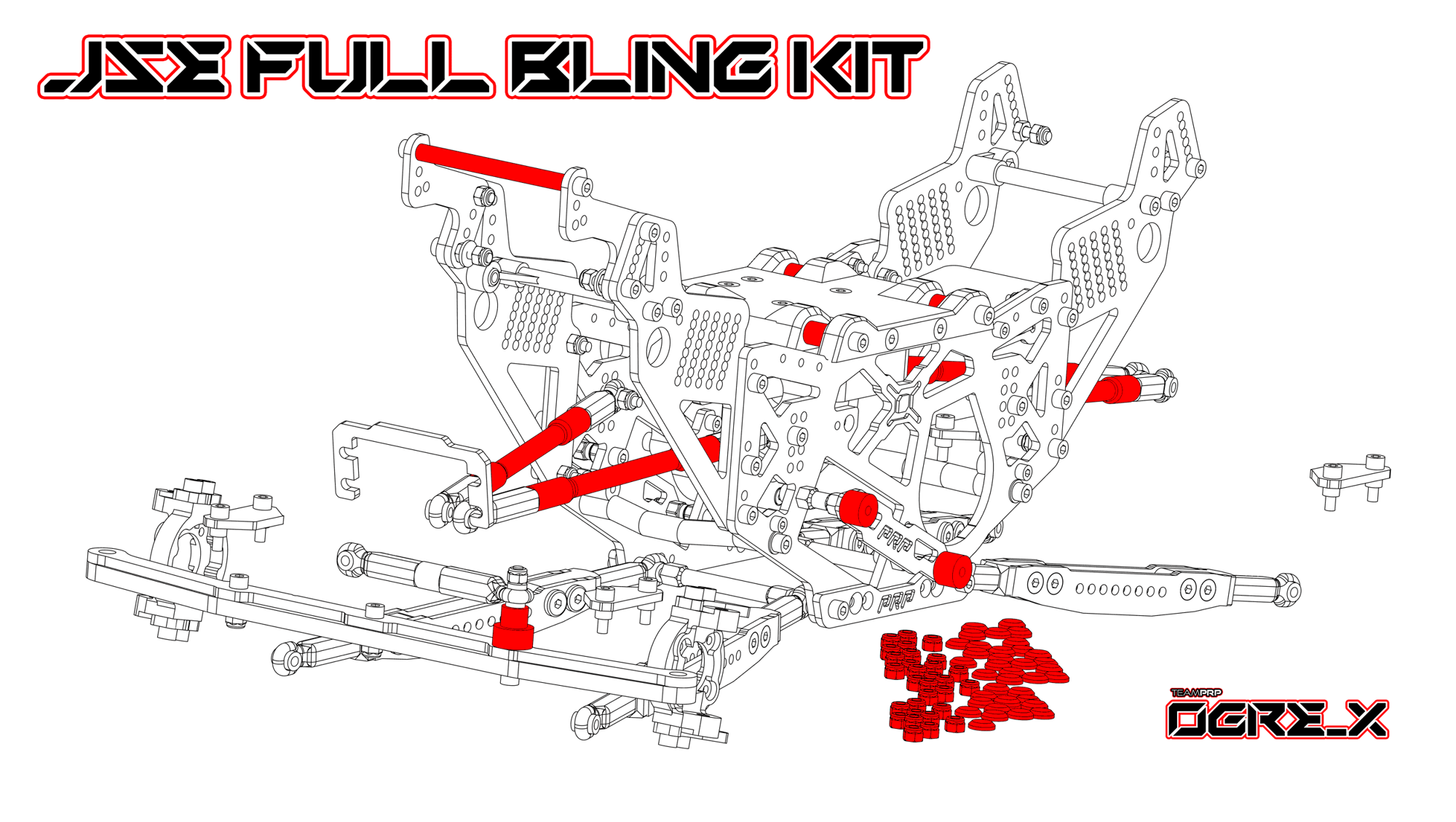

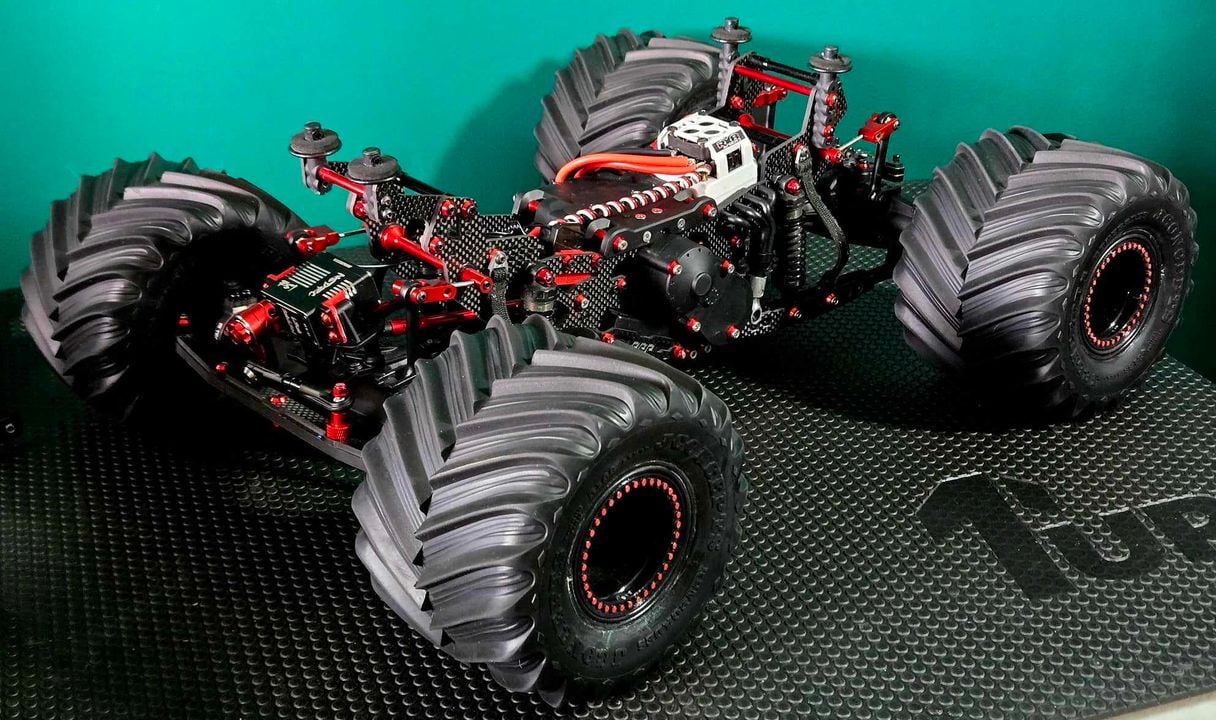

🔥 JSE FULL BLING KIT 🔥 INCLUDED PARTS:
Everything from the Race Kit PLUS:
• Red anodized aluminum upper 4-links
• Red anodized cross braces
• Red anodized aluminum spacers
• Red anodized battery strap thumb nuts
• Red anodized M3 aluminum nuts (around 40pcs exact number yet to be determined)
• Red anodized aluminum counterbore washers (around 50pcs, exact number yet to be determined)
• Link to instruction manual
• Team PRP decals
Option parts included in FULL BLING kit:
• Special Edition JSE STL towers. Full columns of interconnected holes for minute shock position adjustments! Can accommodate 90-105mm eye to eye shocks.
• Front body post extensions!
• Titan 10º Aluminum Caster Blocks!
• Titan CF Steering Linkage with red washers and link riser!
• FS Drag Link!
• Carbon Servo Spacer!
• Carbon Fiber SOACAPs!
3D Print files available on the support page!
• JSDesigns Tekin ESC switch mount
• JSDesigns RX mount
• Team PRP Wire Router
Ogre X decal sheets are available on my print on demand Redbubble shop. See Merchandise page for the link from the menu above.
Special option parts:
• Steel Skid Plates for all Ogre kits can be found in the shop.
• Plastic Skid Plates for 3D Printing are available to download on the support page.
Check our shop for these great option parts:
• STL Shock Towers
• Duo Shock Towers
• Steel Skid Plate
• Titan CF Steering Linkage
• Titan 10º Caster Blocks with adjustable steering stops
• Carbon Fiber Servo Spacer
• FS Drag Link
• Rear Axle Weight Mount
• And more!
Pricing and specifications subject to change while we continue to develop and advance our products.
