Losi LMT Goblin X chassis kit






PRE ORDER! First 6 kits ship in July! With the next batch expected shipping in late August.
The dual motor Goblin has evolved! Taking the race-winning, inverted transmission design of the S1 Ogre and Ogre X kits and adapting it into a twin motor, sport mod class dominator! The Goblin X has arrived! The Goblin X converts the center chassis of your Team Losi LMT monster truck, LMT 2.0, Mega Truck or TLR Tuned LMT to a much lower CG, 2S racing machine with the ability to run twin motors on the bottom of the chassis or a single motor positioned on the bottom at mid front or mid rear. The electronics tray may also be positioned front or rear to further tune weight bias. NOTICE! Shock towers are NOT included with the kit but can be purchased from the shop or use the shock towers from your donor LMT kit. See more below in the INCLUDES and the REQUIRES sections.
Designed for advanced hobbyists, racers and those comfortable building kits to high standards.
Be sure you choose the Goblin X kit with the correct wheelbase you plan to use:
• LMT1.0 Digger RTR trucks are 13.5" WB. Goblin X 13.5" includes 70mm upper link rods.
• LMT2.0, TLR Tuned, Mega Trucks are 15" WB. Goblin X 15" includes 90mm upper link rods.
• 14" WB is a more custom build and requires Ogre "long" trailing arms or your own customized lower 4-links. Goblin X 13.5-14" includes 70mm upper links and the links are mounted further out on the chassis to accommodate the longer WB or you may request to swap to our 75mm upper links in order notes in checkout.
• Team PRP ShreddeR Motors (sold separately) are the perfect companions for the chassis kit when setting up a Sport Mod 17t brushed motor race truck! See them in the shop under the "motors" category.
The Goblin X features:
• Twin motor mounts on the bottom of the chassis with the use of a second Losi LMT Idler gear (required for twin motors and sold separately).
• Twin motors on the bottom of the chassis make for a very stable and low cg truck.
• Accepts 2S shorty Lipo batteries with a horizontal orientation, side-chassis-mounted, low cg, adjustable battery compartment.
• Accepts Losi LMT outer chassis plates/shock towers or aftermarket.
• Option to run a single motor with or without the stock gear box.
• Your choice of upper 4-links for 13.5-14" or longer 15" wheelbases.
• Fits 540 brushed motors and 540 brushless. Will fit many 550 motors if you use your building skills and take care in setting up the adjustable battery compartment and spacing it to work with your build.
Goblin X INCLUDES:

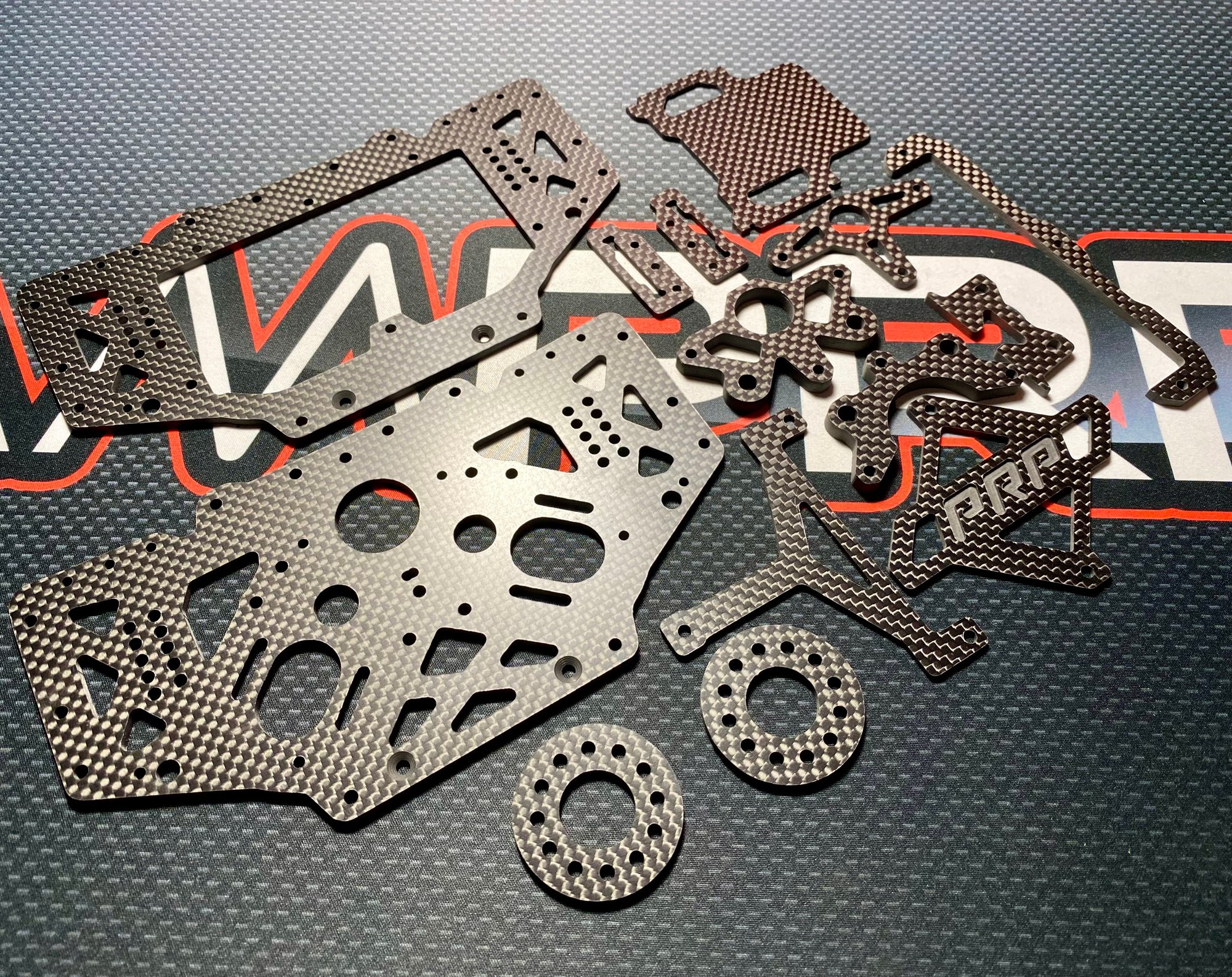

• Carbon fiber core center chassis plates (Shock towers sold separately or taken from your donor kit).
• Carbon fiber electronics tray with carbon mounts. (You may purchase a second electronics tray for those crazy custom dual brushless setups.)
• Carbon fiber battery tray assembly.

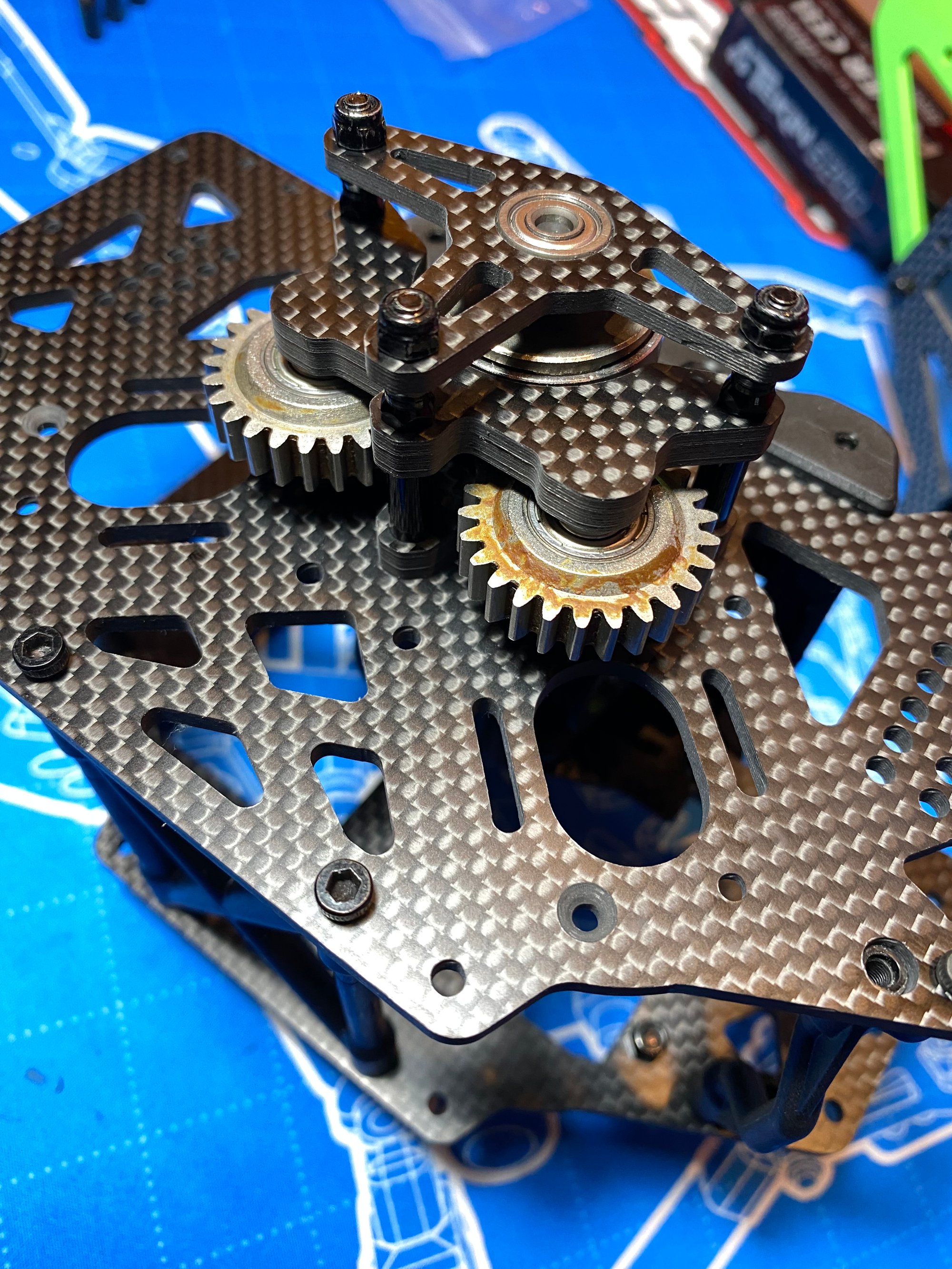

• Twin motor transmission assembly (requires 2 Losi LMT idler gears and idler gear shafts when using dual motors, see below in REQUIRES).
• CNC machined black anodized aluminum cross braces 66mm x2.
• CNC machined titanium gray anodized upper 4-links: The Goblin X for 13.5"-14" wb comes with 70mm upper links. The Goblin X for 15" wb comes with 90mm upper links.
• RC4wd Long M4 rod ends for upper 4-links.
• M5x13x4 Bearings x2 for the second Losi LMT idler gear.
• M4x12x4 flanged outer bearing for the cush gear mount.
• Hardware to assemble core chassis components.

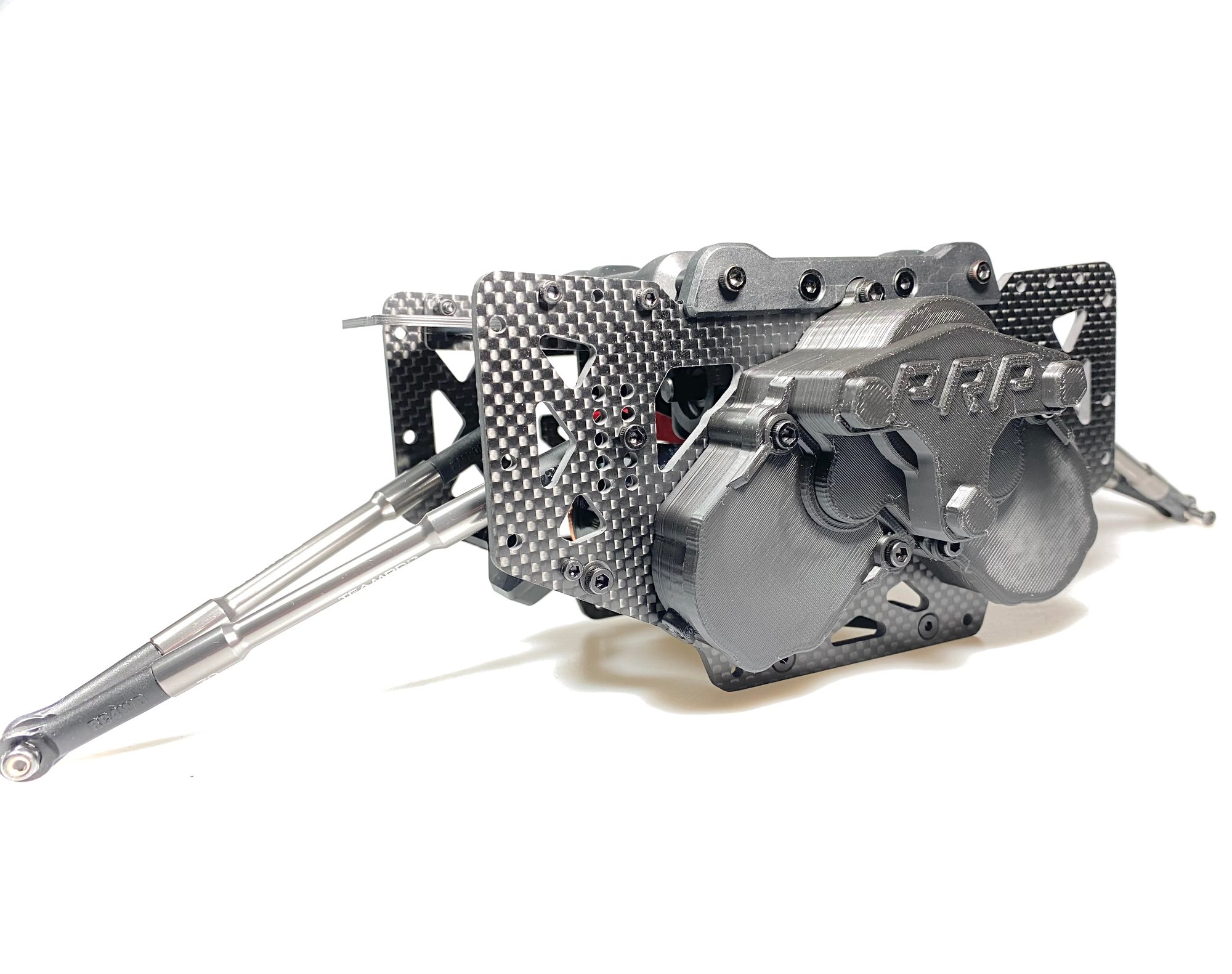

• 3D printed gear cover from my low end home printer. 3D file will also be available to download.
Goblin X REQUIRES:
• Donor Losi LMT kit.
• Losi LMT Idler Gear: Two (2) Losi idler gears with gear shafts. Losi idler gear set is part# LOS242044 (use the one from your donor kit and then buy a second set).
• Shock towers: May use PRP STL, PRP DUO, stock Losi LMT, TLR Tuned, LMT2.0 or other aftermarket towers depending on your donor kit and shock setup you choose to go with.
• Lower 4-links from your donor Losi LMT kit or aftermarket trailing arms.
• Lower 4-link ROD ENDS from your donor LMT kit.
• 14" to 15" wheelbase setups require Mega length center drive shafts trimmed down to size (trim instructions are shown in instruction manual).
To build a Team PRP Full Spec Goblin X chassis kit you may purchase the following components and use the discount code, COMBO for a discount on 2 or more option parts:
• Team PRP STL or DUO shock towers.
• Team PRP STL front body post extensions.
• Team PRP lower 4-link trailing arms in either the Ogre short 13.5" wb, Ogre long 14" wb lengths or coming soon LMT2.0 15" wb length.
• Ogre Skid Plate will fit the Goblin X but only the outer 4 screws.
• Other parts such as the Titan CF Steering linkage, Titan caster blocks, rear axle weights, etc., are also available.
• Each of these products can be found here in the Team PRP shop.
• Use the code: COMBO for a discount on 2 or more option parts for a special bundle deal!

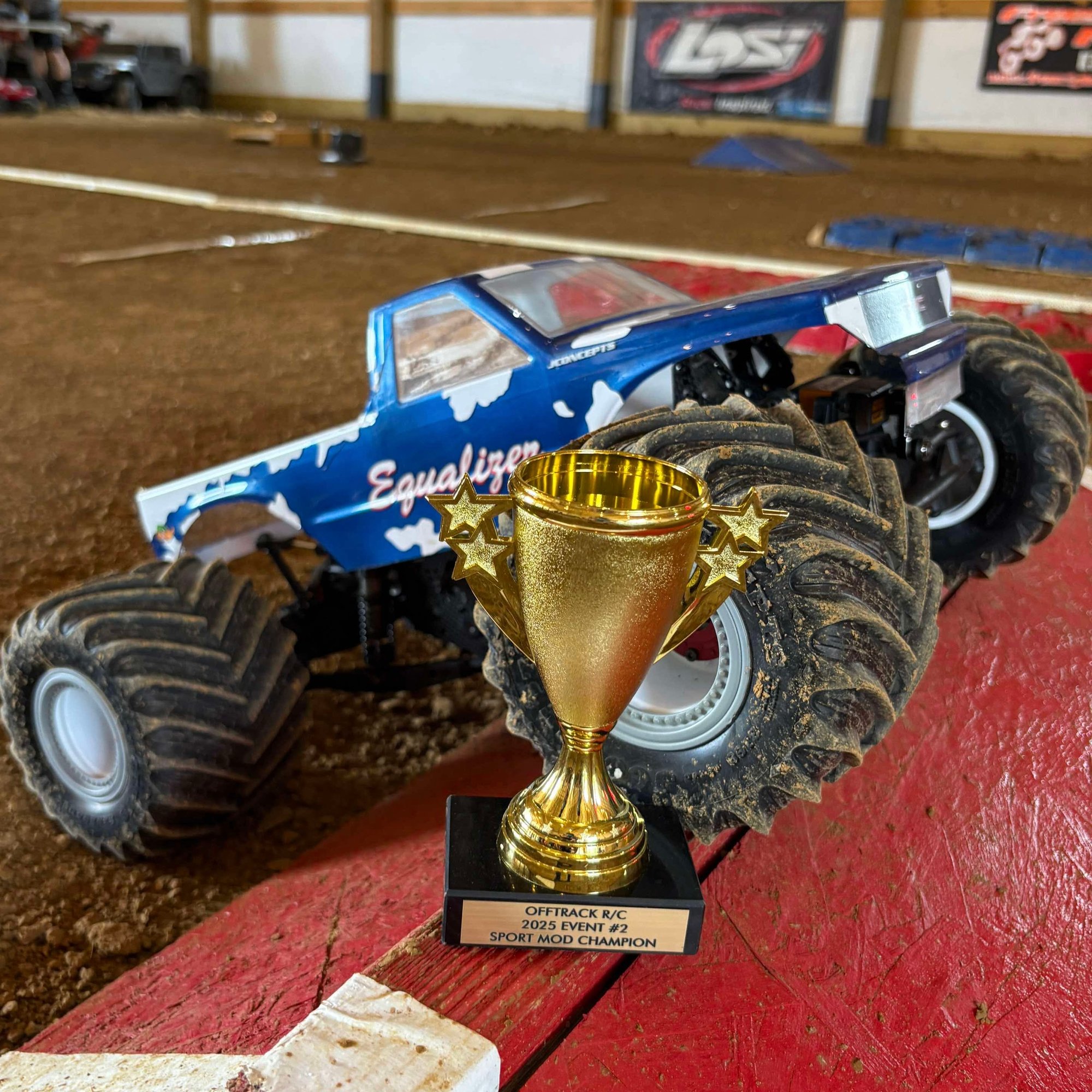

Photo shows complete truck and motors installed for promotional purposes. You are buying the core chassis kit only!
Pricing and specifications subject to change while we continue to develop and advance our products.
