Team PRP FCR LMT Chassis Conversion Kit
FCR Sport and Pro limited quantities in stock!

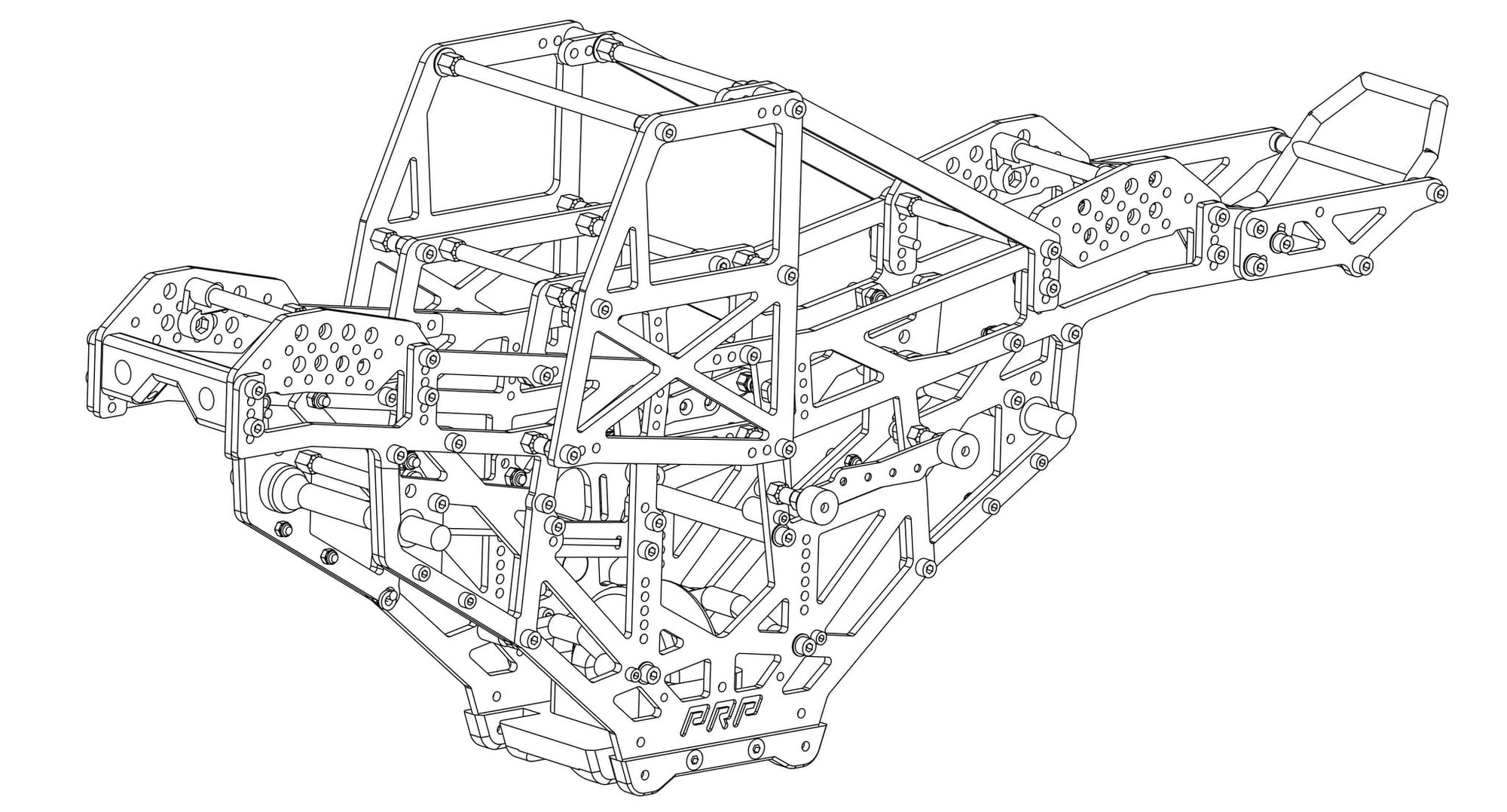

Team PRP's FCR chassis conversion kit is a direct bolt-on for the Team Losi LMT RTR Digger and Mega trucks.
Scale MT looks meets racing performance with Team PRP's faux, tube-frame stye, semi scale race chassis. Taking aim at the Ultra Mod and Challenger racing classes or those of us who enjoy racing a more scale looking monster truck in any RCMT class! Check your club's rules before ordering. We are not responsible if you can't race it in your club.
There are 2 versions available: "Sport" CNC machined from G10 material and "Pro" CNC machined from Carbon Fiber material.
The FCR is a direct conversion kit for the Losi LMT Digger/Roller and Mega Trucks. TLR Tuned LMT shock mounts are available separately as an option part for converting TLR Tuned LMT's to the FCR. The FCR uses most of your stock Losi LMT parts. No modifications are required. The kit comes with its own LCG electronics tray and it also accepts the TLR Tuned Losi LMT electronics tray and the TLR Tuned or RTR LMT battery trays. If you are running a 2S Shorty pack you do not need a Losi battery tray as the chassis includes low CG 2S shorty battery mounts.
INCLUDES
• Black G10 faux tube frame side plates.
• Black G10 removable and adjustable upper cab with removable roll bars.
• Black G10 adjustable upper shock mounts for stock 130mm length shocks or variations.
• Black G10 removable sway bar mounts. No longer need to take the side of the truck apart to remove the sway bars!
• Black G10 LCG Electronics tray and mounts.
• Black G10 wheelie bar mount accepts TLR Tuned molded wheelie bump bar - see notice below.
• Shorty Lipo Battery mount (chassis also accepts the stock Losi LMT battery tray).
• Battery straps featuring mounts for motor header accessory.
• CNC machined black aluminum chassis braces.
• Black socket head hardware.
• Black nyloc nuts.
• Black spacer set.
• Shortened sway bar linkages for use with lower ride height setups.
• Link to PDF manual
• Team PRP Decals
FCR PRO INCLUDES
• Everything above but all G10 parts are Carbon Fiber!
REQUIRED
• Losi LMT Roller, Digger trucks or Mega Trucks.
• Losi LMT 4-Links (all 8 links) and rod ends.
• Losi LMT 130mm stock shocks or similar length.
• Losi LMT chassis cross braces.
• Body, wheels, tires, electronics, etc.
• Optional: Losi LMT or TLR Tuned LMT battery tray. Not required if you plan to use a shorty pack. You can install a 2s Shorty though the center of the frame without the need of a Losi LMT battery tray.
• Optional: TLR Tuned LMT plastic electronics tray. Not required but I included mounting holes for it.
• Losi TLR Tuned LMT shock to link mounts are available separately as option parts.
OPTION PARTS AVAILABLE SEPARATELY
• STL Sport G10 Suspension Mount set: Shock To Link mounting plates in G10 material for use with TLR-Tuned Short 105mm (or similar size) shocks mounted from chassis to the lower link.
• STL Pro Carbon Fiber Suspension Mount set: Shock To Link mounting plates in carbon fiber material for use with TLR-Tuned Short 105mm (or similar size) shocks mounted from chassis to the lower link.
• Aluminum 4-links. 90mm laser etched Team PRP Logo 4-links.
• Aluminum Inner upper 4-link cross braces in 3 color options.
• Titan CF 1º toe out steering linkage.
• Titan 10º Caster Blocks.
• FS Drag Link.
NOTICE: TLR Tuned Wheelie Bar and ESC Tray
The FCR comes with adapters to bolt on the TLR Tuned wheelie bump bar end piece and the TLR Tuned electronics tray as an optional install: Wheelie bar and ESC Tray.

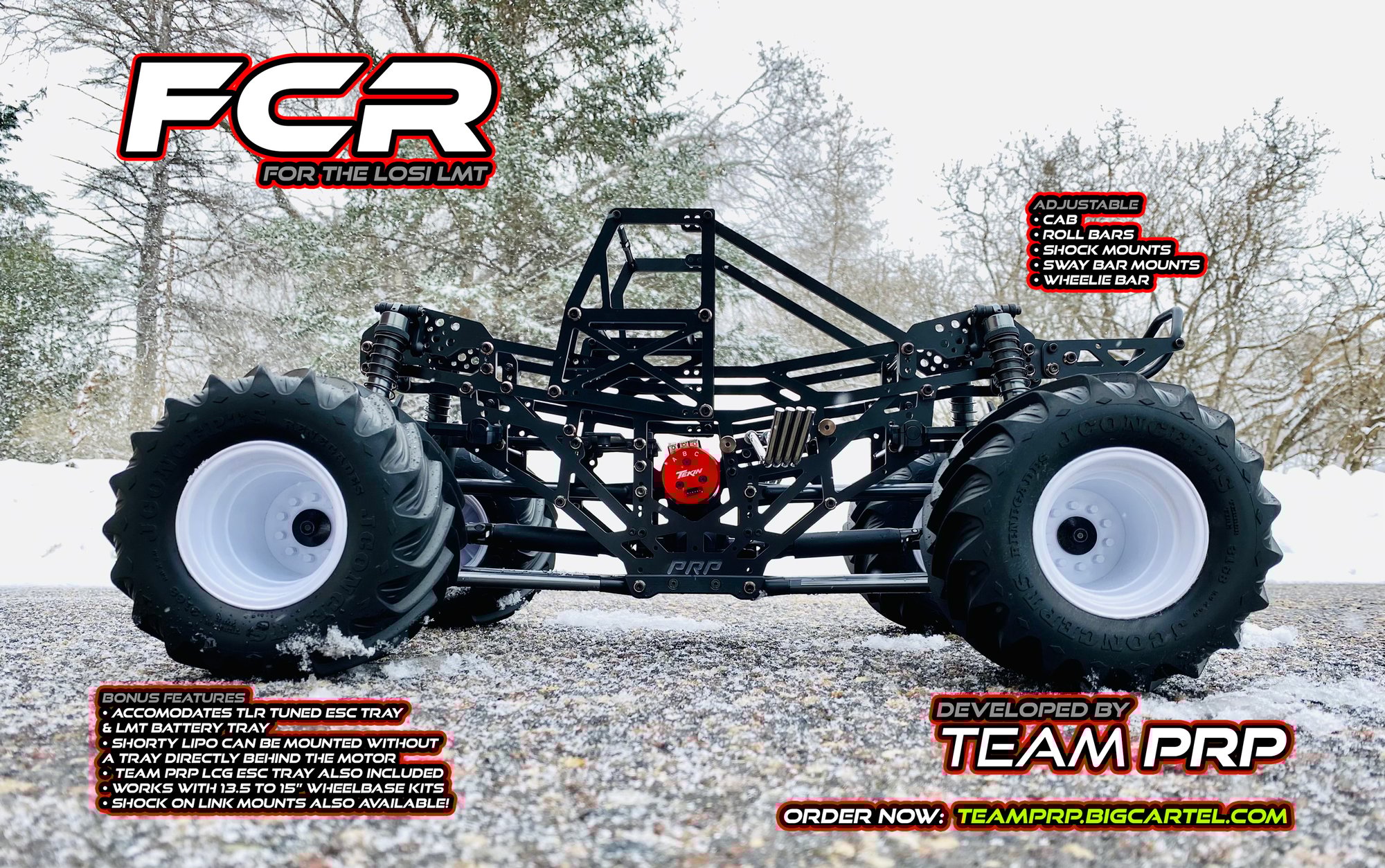

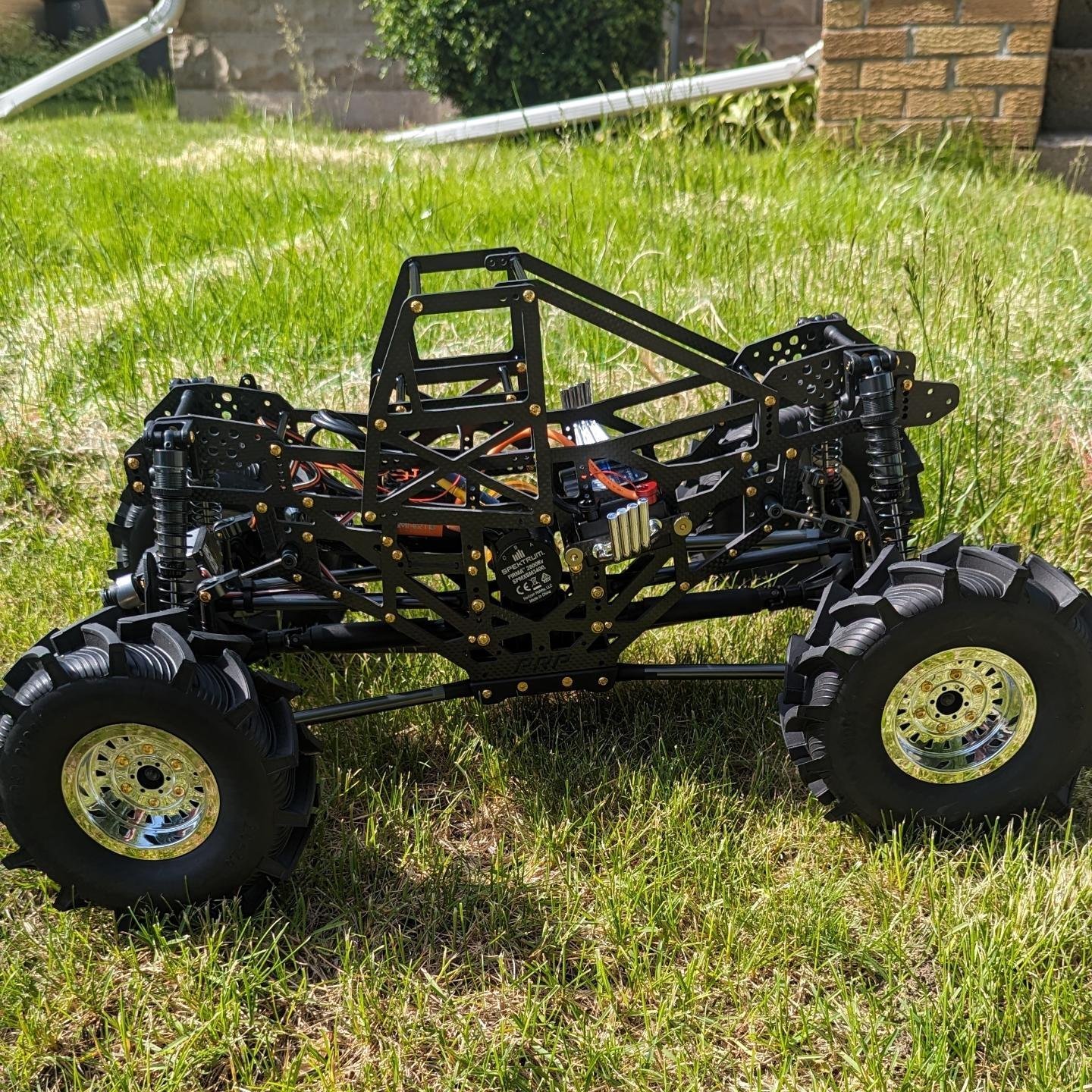

Photos of complete trucks are for reference only.
Pricing and specifications subject to change while we continue to develop and advance our products.
