Losi 1/18 Mini LMT Trailing Arm Lower Links

Team PRP Mini LMT Trailing Arm Lower Links are scaled down replicas of our race-proven Ogre trailing arms! Our trailing arms are fully rebuildable and customizable with carbon fiber, aluminum and steel construction. Choose from TWITCH Length 74mm links which adds 4mm per arm for an 8mm total wheelbase extension or Stock Mini LMT 70mm link length which keeps the stock Mini LMT wheelbase. Optional plastic spacers are included to further extend the length of the "Twitch 74mm length" trailing arms to match the Treal extended link length. WARNING: TWITCH length arms require Treal center drive shafts!

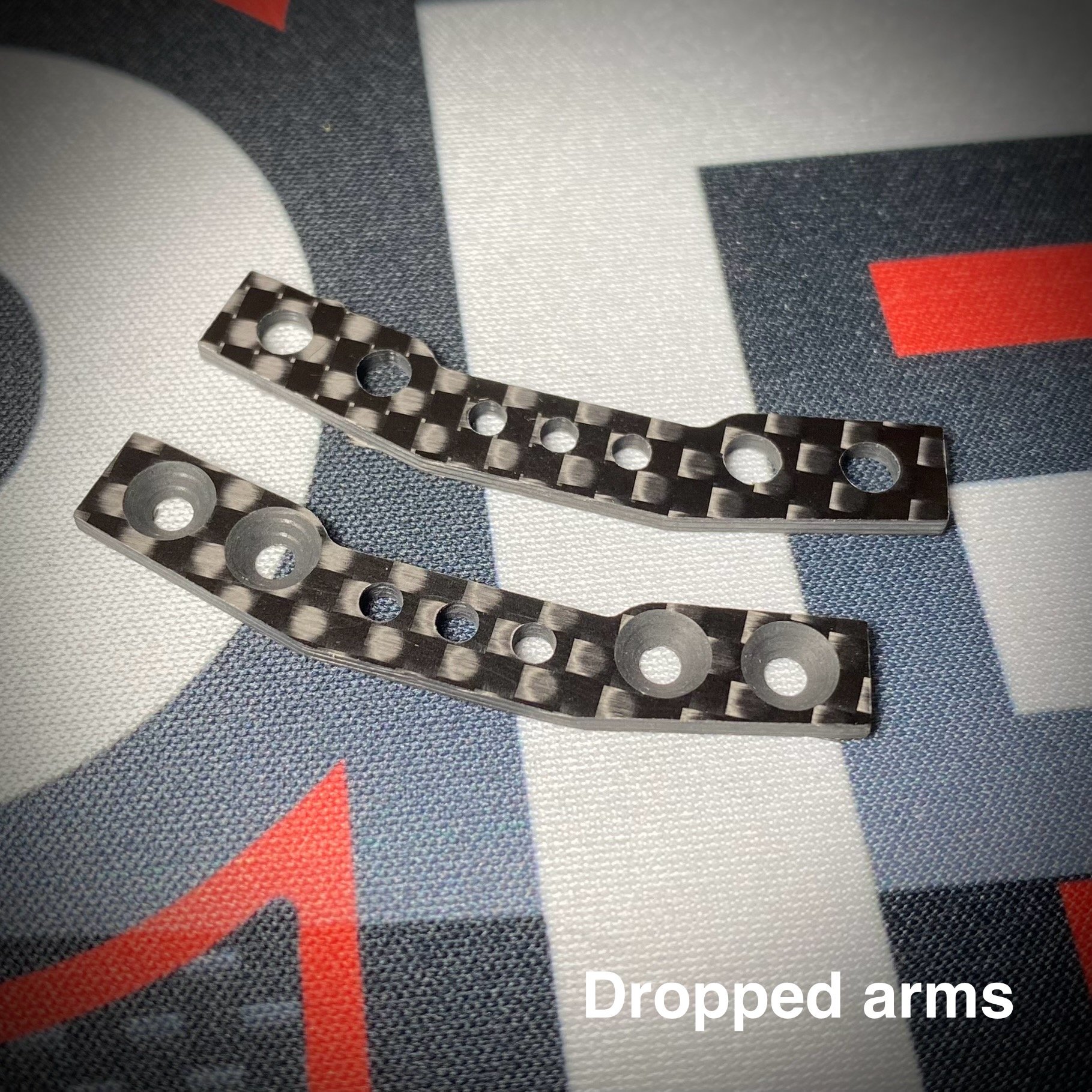

Gull Wing trailing arms will be available soon. These allow you to lower the shocks on the chassis reducing center of gravity.

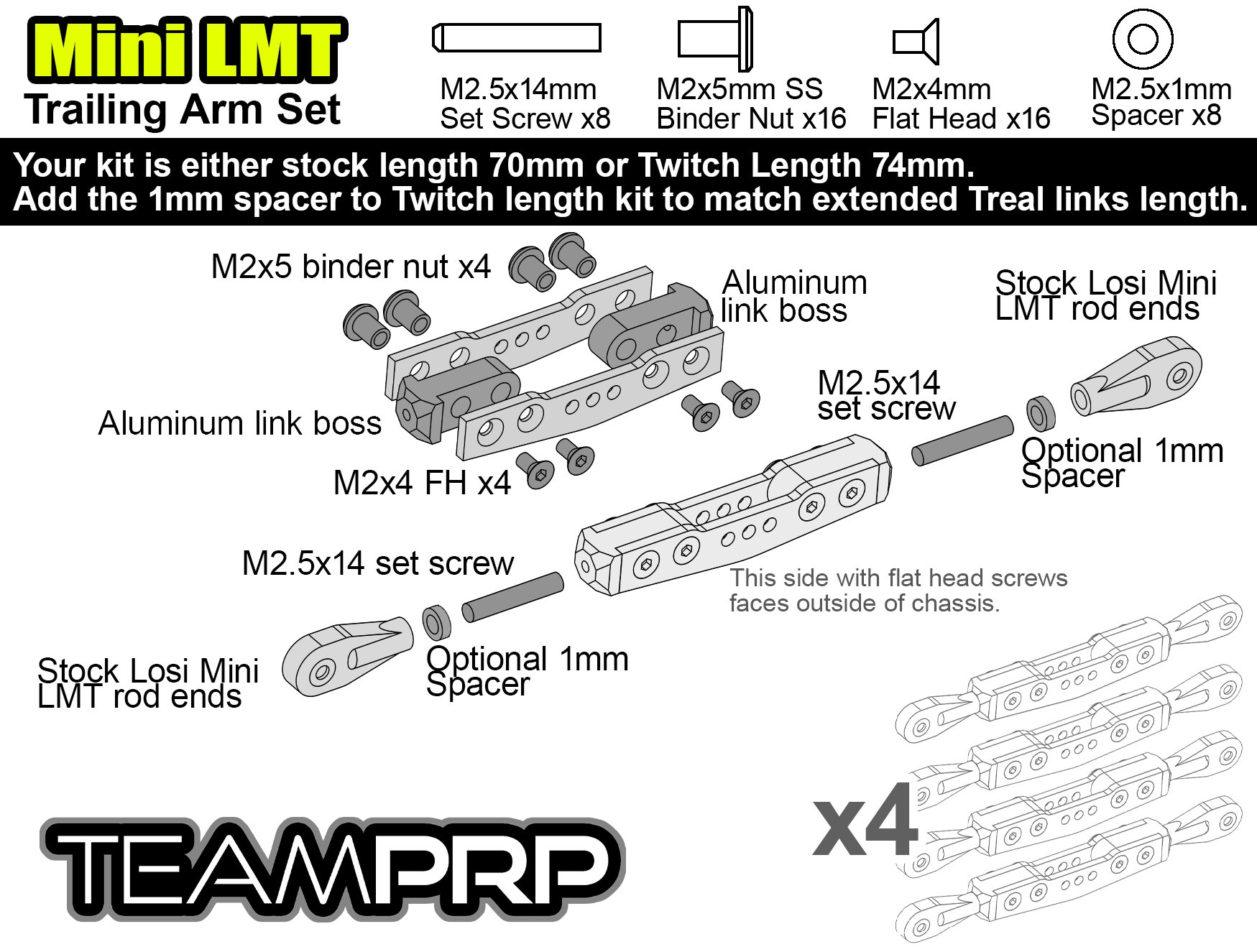

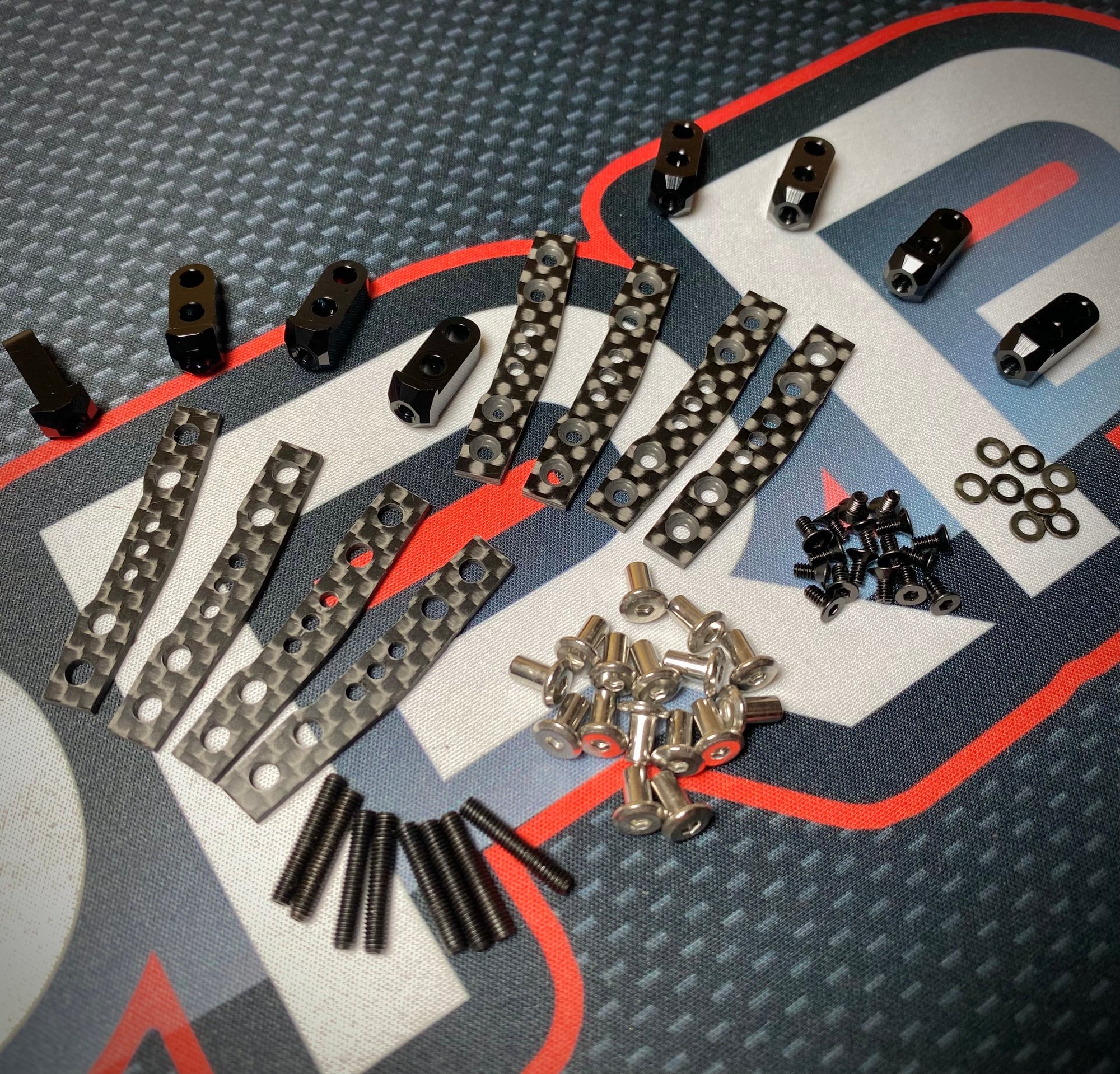

A/B/C/D: TRAILING ARM SET INCLUDES:
• Complete set of 4 trailing arms to complete 1 truck.
• Carbon fiber lower link trailing arms plates x8 (4 inner, 4 outer).
• Black anodized aluminum link bosses x8.
• Stainless Steel binder nuts x16.
• M2.5x14mm set screws x8 (for use with Losi Mini LMT rod ends).
• M2x4mm flat head screws x16.
• M2x10mm cap head lower shock screw x4.
• M2 black steel locknuts x 4.
• Choice of link length eye to eye 74mm (Twitch) or 70mm (Stock Mini LMT)
• Choice of standard or Gull Wing.
• Twitch length arms include M2.5x1mm rod end spacers x8 (option to make links 76mm eye to eye to match the Treal extended links length).

A/B/C/D: REQUIRES:
• Losi MINI LMT rod ends.
• Treal center drive shafts required for long 74mm + "Twitch" length arms.

E/F/G/H: TRAILING ARM PLATES Only
• Spare trailing arm inner and outer plate set.
• Comes as a 2 piece set with 1 inner and 1 outer plate.
• Choose TWITCH length or Mini LMT Length in standard or Gull Wing.
• Requires the parts from the trailing arm set to complete.

I: BLEMISHED TRAILING ARM PLATES Only
• TWITCH length trailing arms with visual defects (Blemished).
• Comes as a 2 piece set with 1 inner and 1 outer plate.
• Requires the parts from the trailing arm set to complete.

OTHER MINI LMT OPTION PARTS:
• Twitch chassis conversion kit for the Losi Mini LMT.
• Mini LMT Steel skid plate and weight set.
• Anodized aluminum upper 4-link cross braces.
• Mini LMT Mini Titan CF steering linkage.

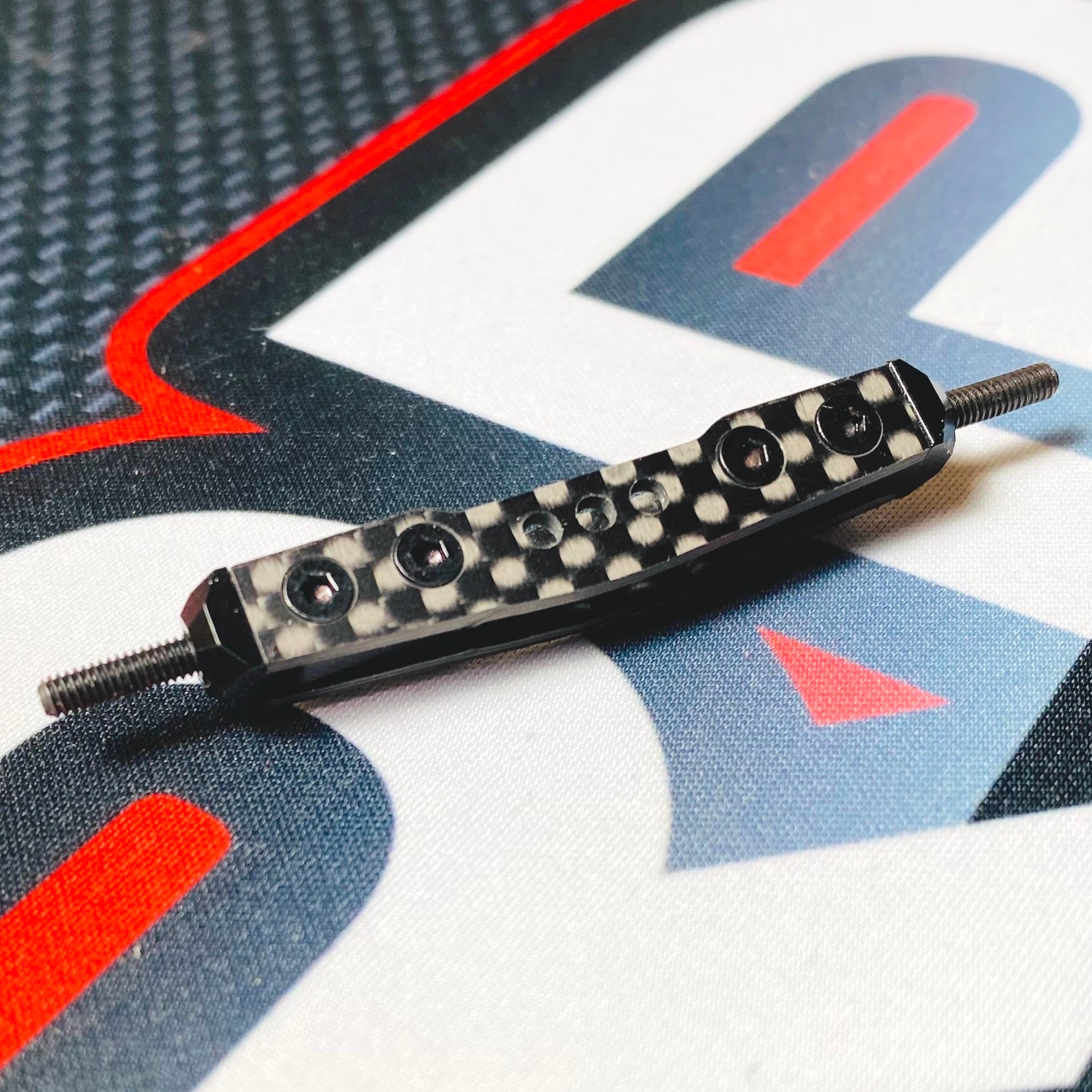

Photo shows TWITCH length arms which include 3 shock mounting holes. Mini LMT stock length arms have 2 shock mounting holes.

Pricing and specifications subject to change while we continue to develop and advance our products.
